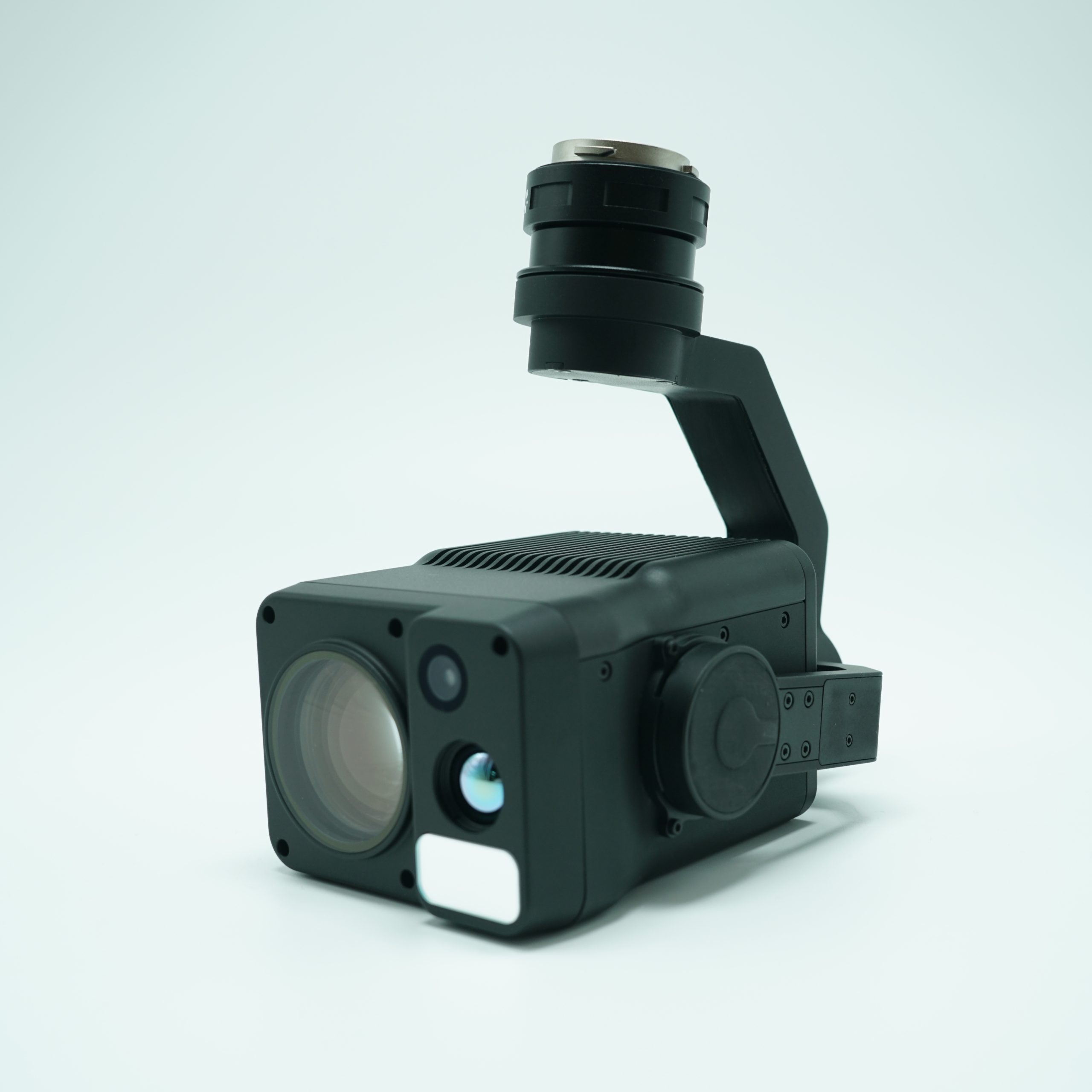

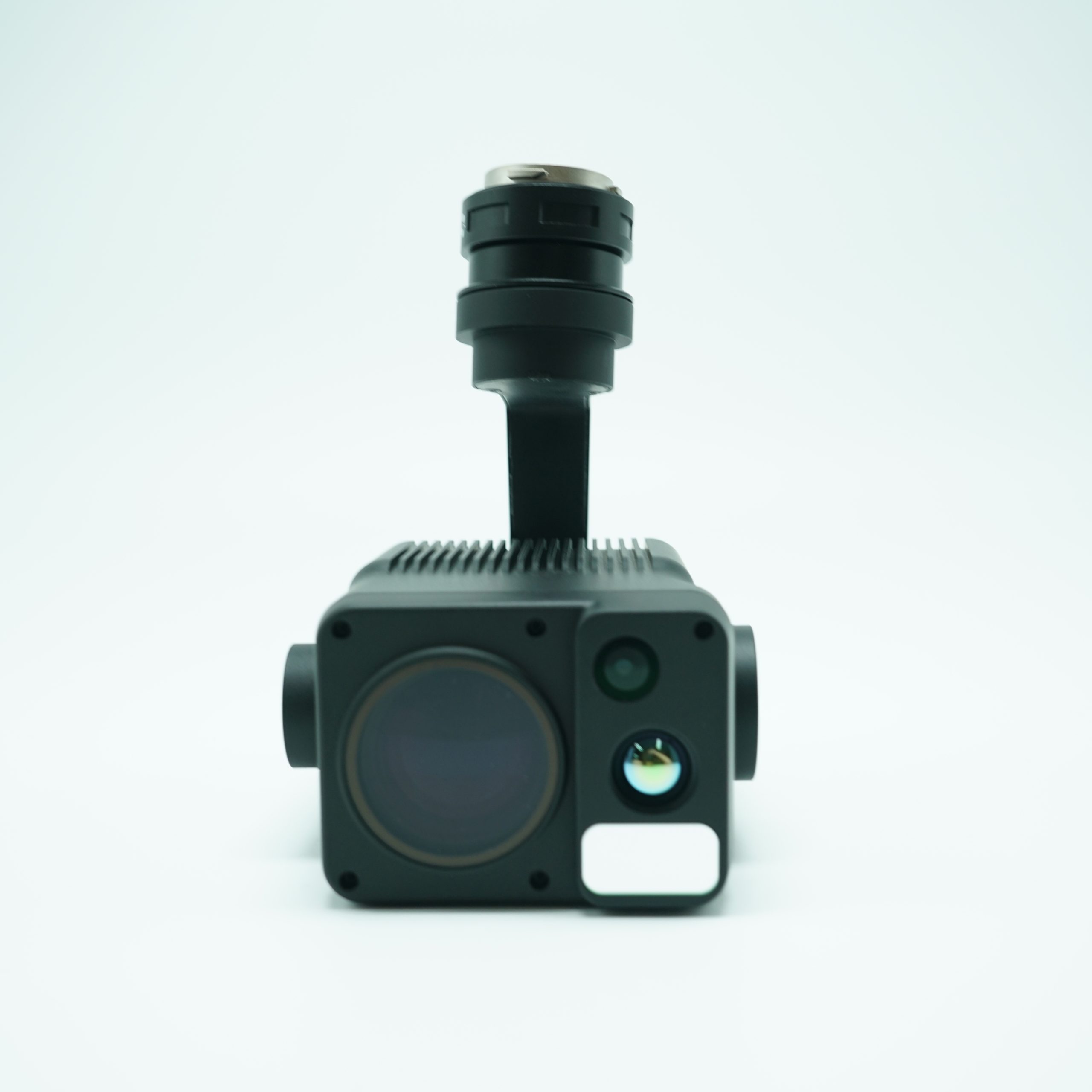

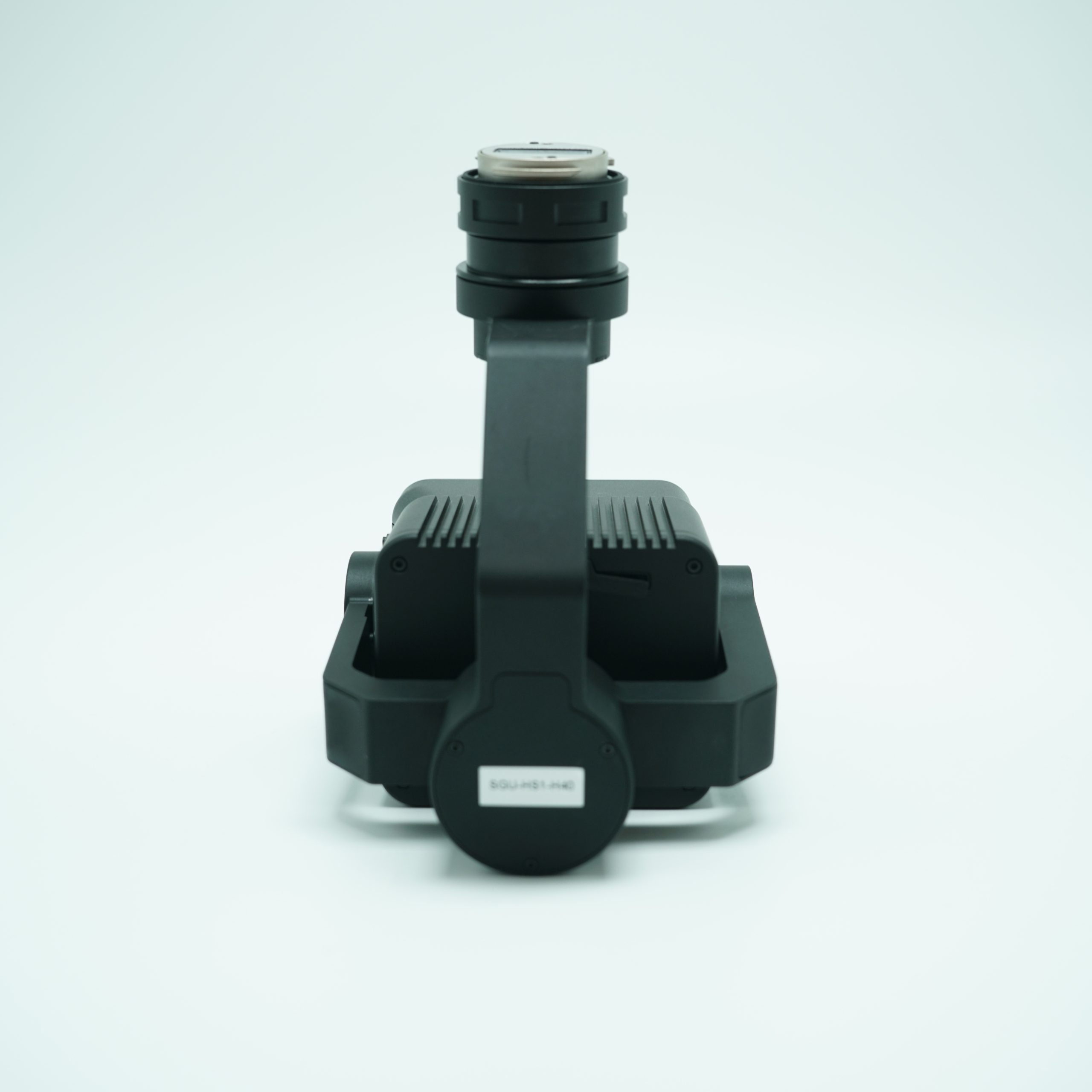

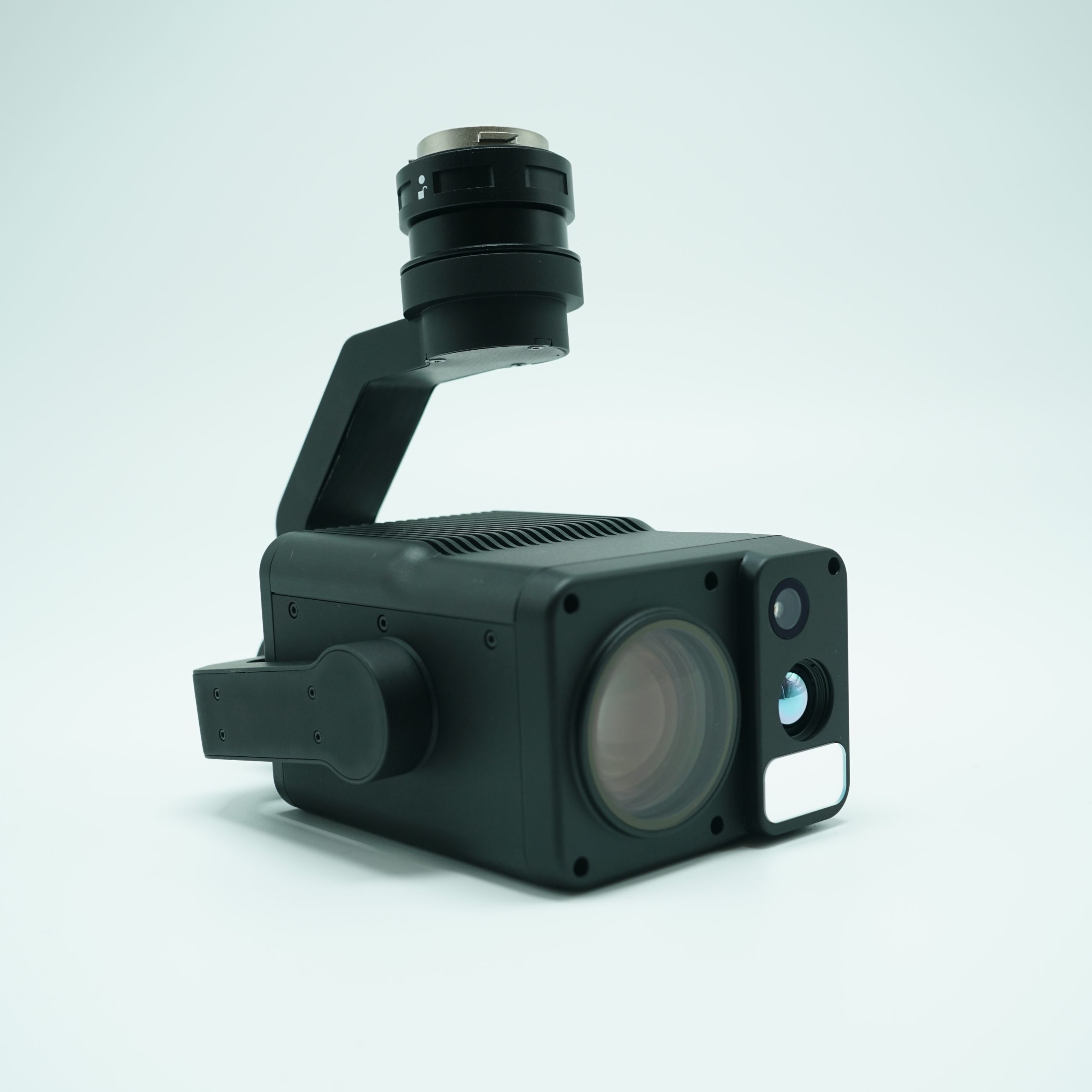

Quad-Sensor Gimbal LUX-H30A
UAV GimBal ModuleQuad-Sensor Gimbal LUX-H30A
Contct Us
1. Technical Parameters
1.1. Overall parameters
| Video output interface |
Ethernet |
| Control Signal Interface |
1 S.BUS, 1 RS422, 1 100M Ethernet, 1 serial port, 1 CAN |
| Power supply range |
10V to 28V |
| System power consumption |
Average power consumption: ≤15W Peak power: ≤40W |
| Protection grade |
IP4X |
| Operating temperature |
– 20 ℃ ~ 60 ℃ |
| Size (without shock absorption) |
109.5 x154.6 x190 |
| Weight (without shock absorption) |
<900g |
| Mechanical interface type |
Quick-release & fixing holes |
1.2. Zoom camera
| Image sensor |
8 million pixels |
|
|
|
| Maximum photo size |
3840*2160 (16:9) |
|
|
|
| Video resolution |
3840×2160@30fps, 1920×1080@30fps |
|
|
|
| Encoding format |
H.264, H.265 |
|
|
|
| Focus mode |
MF, AFS |
|
|
|
| Actual focal length |
5.2 mm to 148.4 mm |
|
|
|
| Equivalent focal length |
35.2 mm to 1005.1 mm |
|
|
|
| Aperture |
F1.3 – F4.8 |
|
|
|
| Optical zoom |
30x |
|
|
|
| Field of view |
Focal length |
DFOV |
HFOV |
VFOV |
| Wide |
63.1 ° |
56.3 ° |
33.5 ° |
|
| Tele |
2.5 ° |
2.1 ° |
1.2 ° |
|
1.3. Wide-angle camera
| Image sensor |
12 million pixels |
| Maximum photo size |
4056*3040 (4:3) |
| Video resolution |
38402160@30fps 19201080@30fps |
| Encoding format |
H.264, H.265 |
| Actual focal length |
The 4.48 mm |
| Equivalent focal length |
The 24.7 mm |
| Aperture |
F2.6 |
| Field of view |
DFOV82° HFOV70° VFOV55° |
1.4. Infrared camera
| Thermal imaging sensor |
Uncooled vanadium oxide infrared focal plane detector |
| Maximum photo size |
640 * 512 |
| Video resolution |
640*512@25fps |
| Encoding format |
H.264, H.265 |
| Pixel spacing |
12 microns |
| Wavelength range |
8 to 14 microns |
| Noise equivalent temperature difference |
≤ 50 mk@25 ° c, f#1.0 |
| Actual focal length |
18mm |
| Equivalent focal length |
79mm |
| Aperture |
F1.1 |
| Field of view |
24.2 ° * 19.5 ° |
| False color |
Supports 11 pseudo-color modes |
1.5. Laser rangefinder
| Ranging range |
5-1500m |
| Ranging accuracy |
≤1m (≤300m), ≤±2m(> 300m) |
| Operating wavelength |
905nm±10nm@25℃ |
| Ranging frequency |
Single, 1Hz, 2Hz, 5Hz |
1.6. holder
| Stabilization system |
3-axis (pitch, roll, heading) |
|
|
| Range of rotation |
Pitch |
Roll Over |
Heading |
| + 110 ° |
-45° to +45° |
+ 320 ° |
|
| Stable accuracy |
0.01 ° or less |
|
|
| Working mode |
Follow, Lock |
|
|

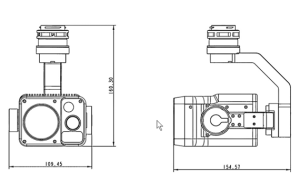

1.7. Structural outline
