1. Technical Parameters
1.1. Overall parameters
| Video output interface |
Ethernet port |
| Control Signal Interface |
1 S.BUS, 1 RS422, 1 100M Ethernet, 1 serial port, 1 CAN |
| Power supply range |
10V to 28V |
| System power consumption |
Average power consumption: ≤15W Peak power: ≤40W |
| Protection class |
IP54 |
| Operating temperature |
– 20 ℃ ~ 60 ℃ |
| Size (without shock absorption) |
145mm×185mm×207mm |
| Weight (without shock absorption) |
Less than 1200g |
| Mechanical interface type |
Quick-release & fixing holes |
1.2. Zoom camera
| Image sensor |
48 million pixels |
|
|
|
| Maximum photo size |
8000*6000 (4:3) |
|
|
|
| Video resolution |
3840×2160@30fps, 1920×1080@30fps |
|
|
|
| Encoding format |
H.264, H.265 |
|
|
|
| Focus mode |
MF, AFS |
|
|
|
| Actual focal length |
7.1 mm to 171.95 mm |
|
|
|
| Equivalent focal length |
38.4 mm – 930 mm |
|
|
|
| Aperture |
F1.6 – F5.2 |
|
|
|
| Optical zoom |
24x |
|
|
|
| Field of view |
Focal length |
DFOV |
HFOV |
VFOV |
| Wide |
58.8 ° |
48.5 ° |
37.4 ° |
|
| Tele |
2.7 ° |
2.1 ° |
1.6 ° |
|
1.3. Wide-angle camera
| Image sensor |
50 million pixels |
| Maximum photo size |
8192*6144 (4:3) |
| Video resolution |
38402160@30fps 19201080@30fps |
| Encoding format |
H.264, H.265 |
| Actual focal length |
The 6.55 mm |
| Equivalent focal length |
The 23.1 mm |
| Aperture |
F1.68 |
| Field of view |
DFOV86° HFOV73° VFOV58° |
1.4. Infrared camera
| Thermal imaging sensor |
Uncooled vanadium oxide infrared focal plane detector |
| Maximum photo size |
1280 * 1024 |
| Video resolution |
1280*1024@25fps |
| Encoding format |
H.264, H.265 |
| Pixel spacing |
12 microns |
| Wavelength range |
8-12 microns |
| Noise equivalent temperature difference |
≤ 50 mk@25 ° c, f#1.0 |
| Actual focal length |
19mm |
| Equivalent focal length |
The 41.8 mm |
| Aperture |
F1.0 |
| Field of view |
44.2 ° * 35.7 ° |
| False color |
Supports 11 pseudo-color modes |
1.5. Laser rangefinder
| Ranging range |
15-3000m |
| Ranging accuracy |
≤1m |
| Working wavelength |
1535nm±5nm |
| Ranging frequency |
Single, 1Hz-10Hz |
| Accuracy rate |
≥98% |
| Range resolution |
≤20m |
| Divergence Angle |
0.65 mrad or less |
1.6. holder
| Stabilization system |
3 Axes (pitch, roll, heading) |
|
|
| Range of rotation |
Pitch |
Roll over |
Heading |
| + 120 ° |
Plus or minus 45 |
+ 320 ° |
|
| Stable accuracy |
0.01 ° or less |
|
|
| Working mode |
Follow, Lock |
|
|

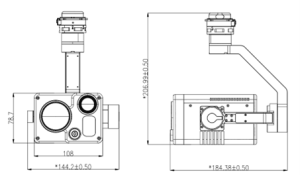

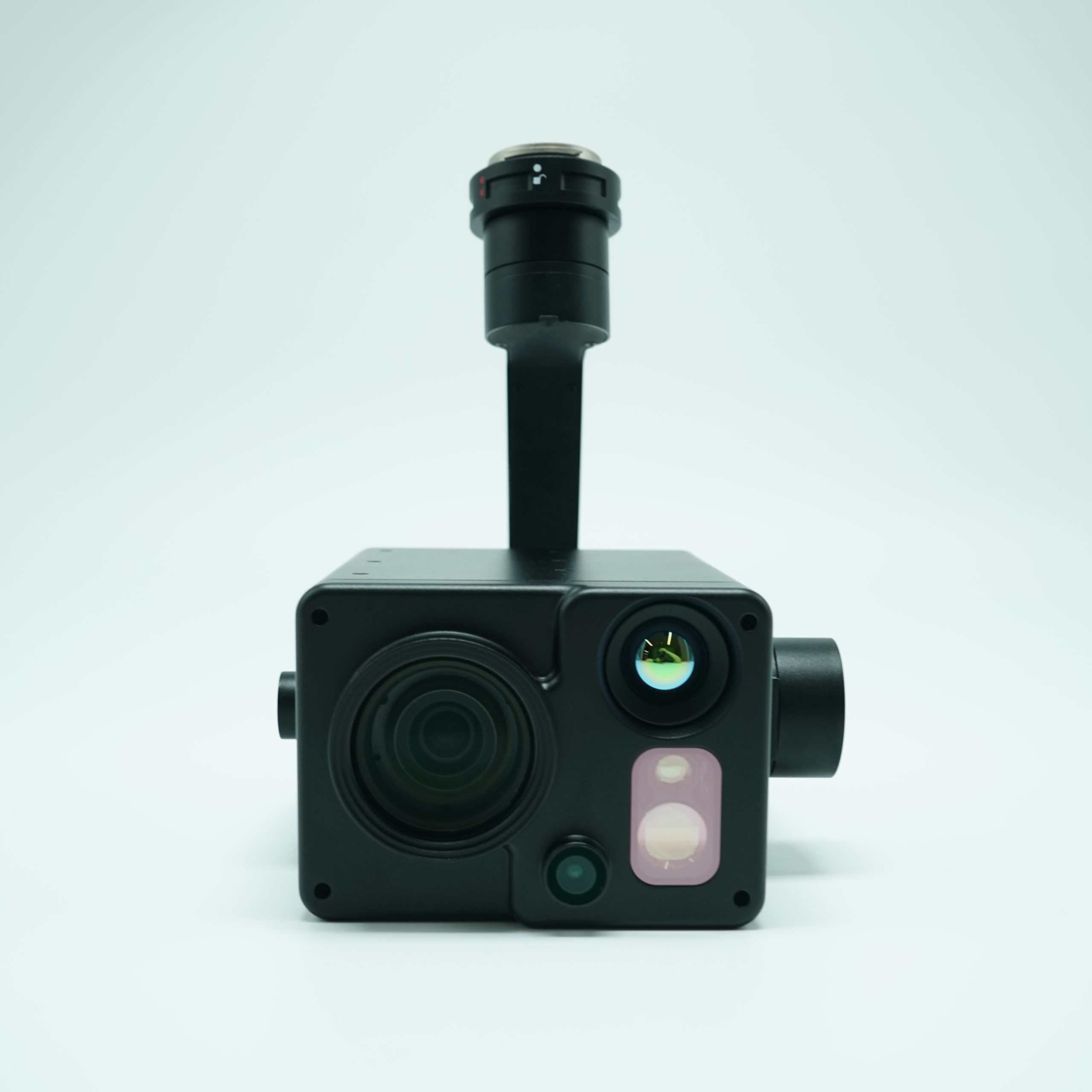

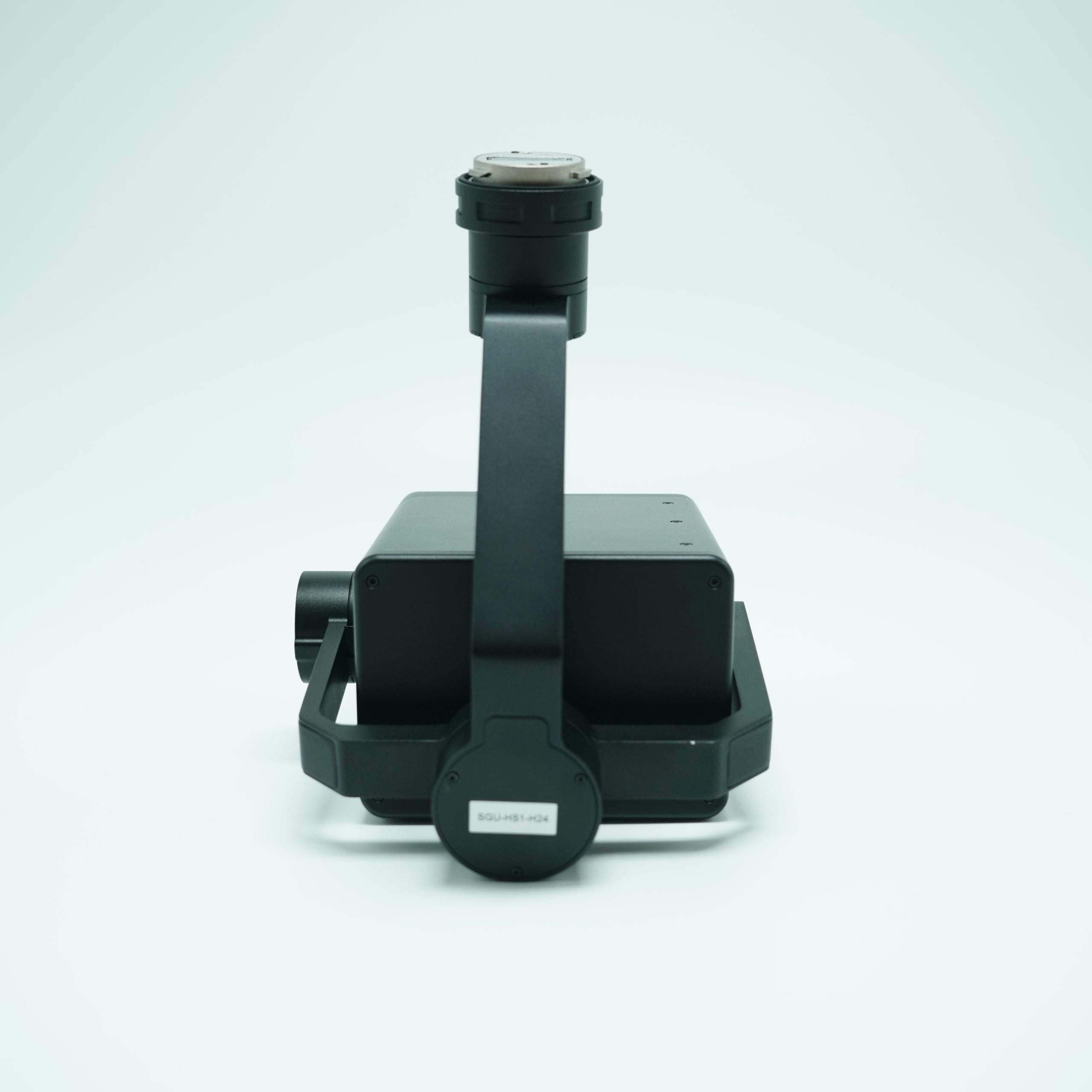

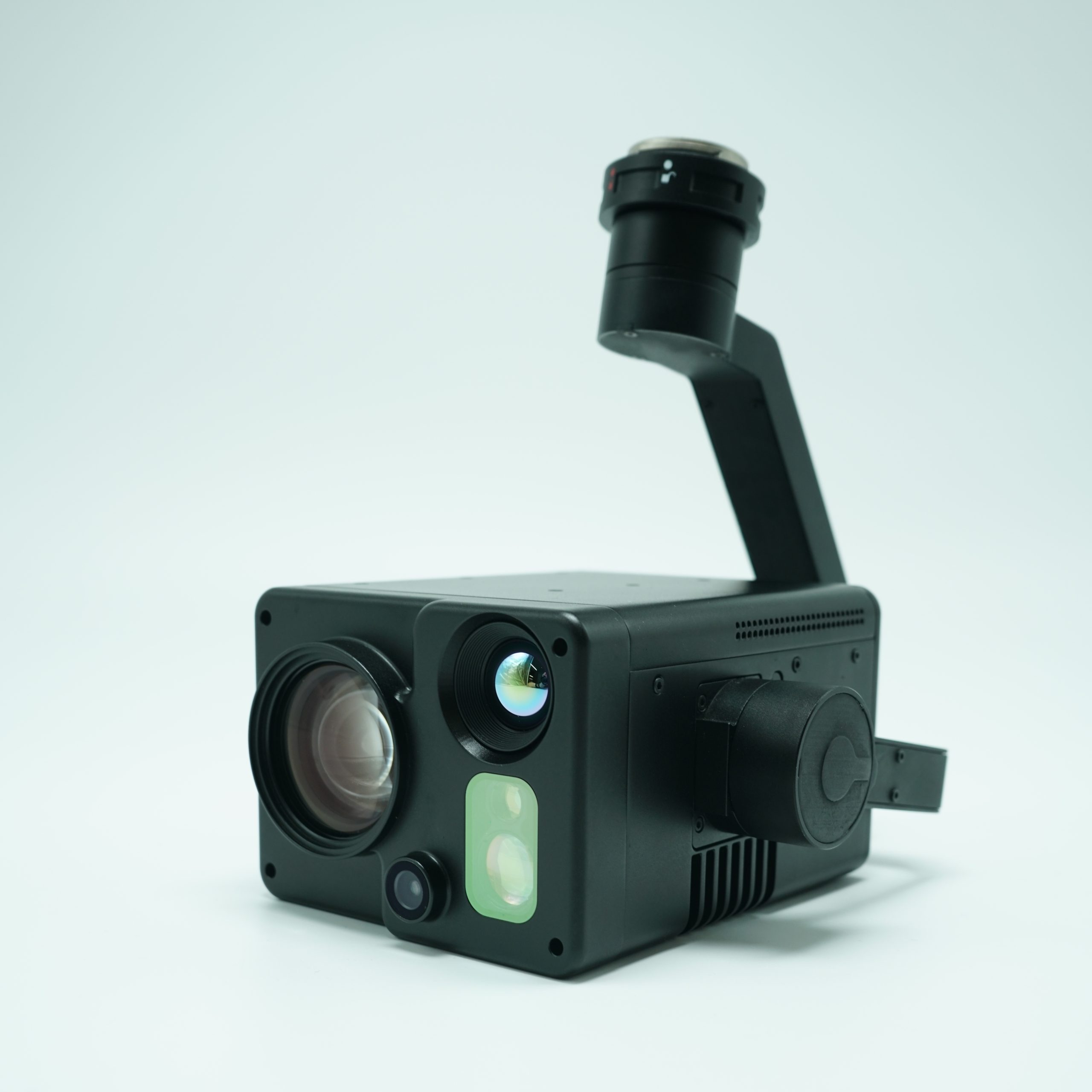

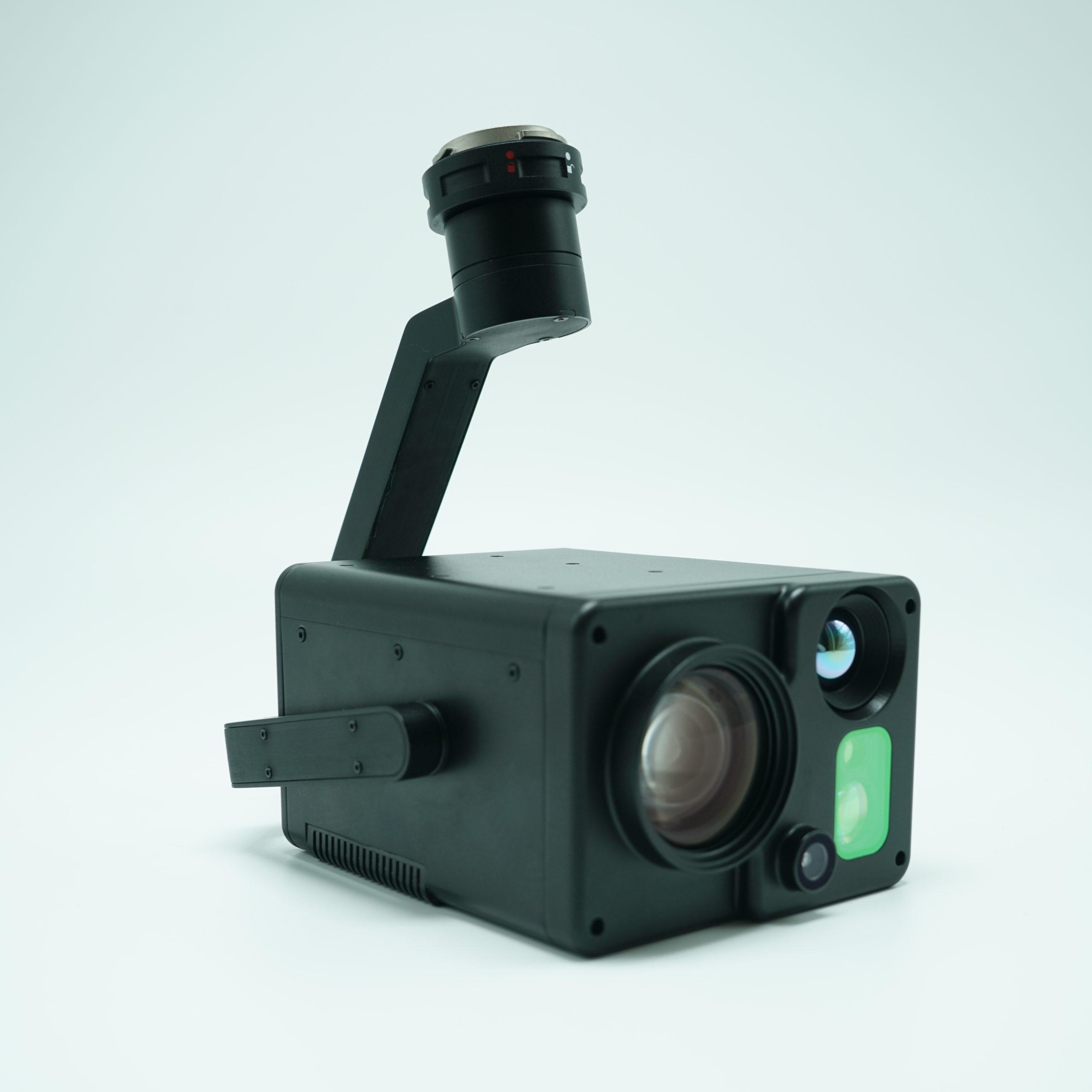

1.7. Structural shape
