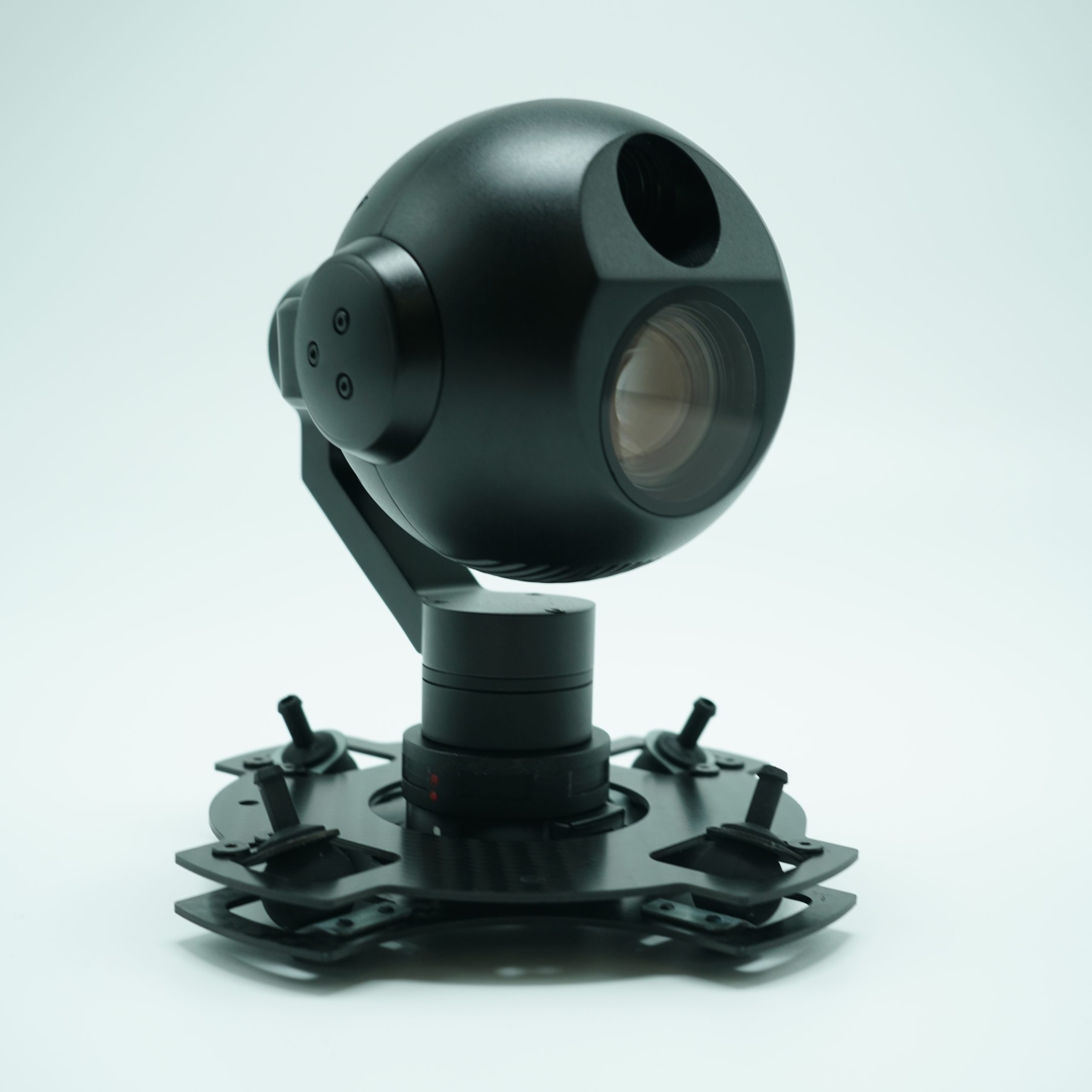

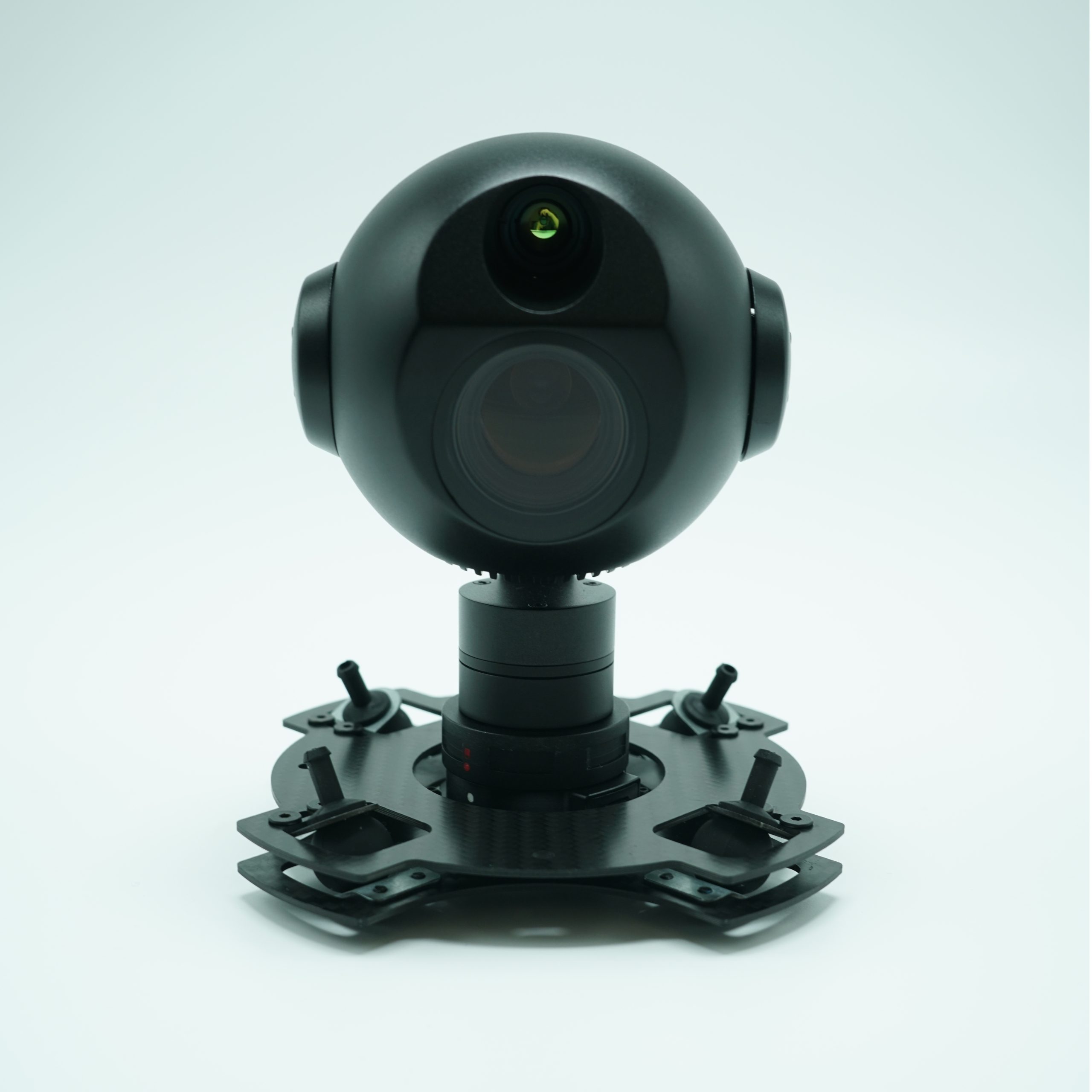

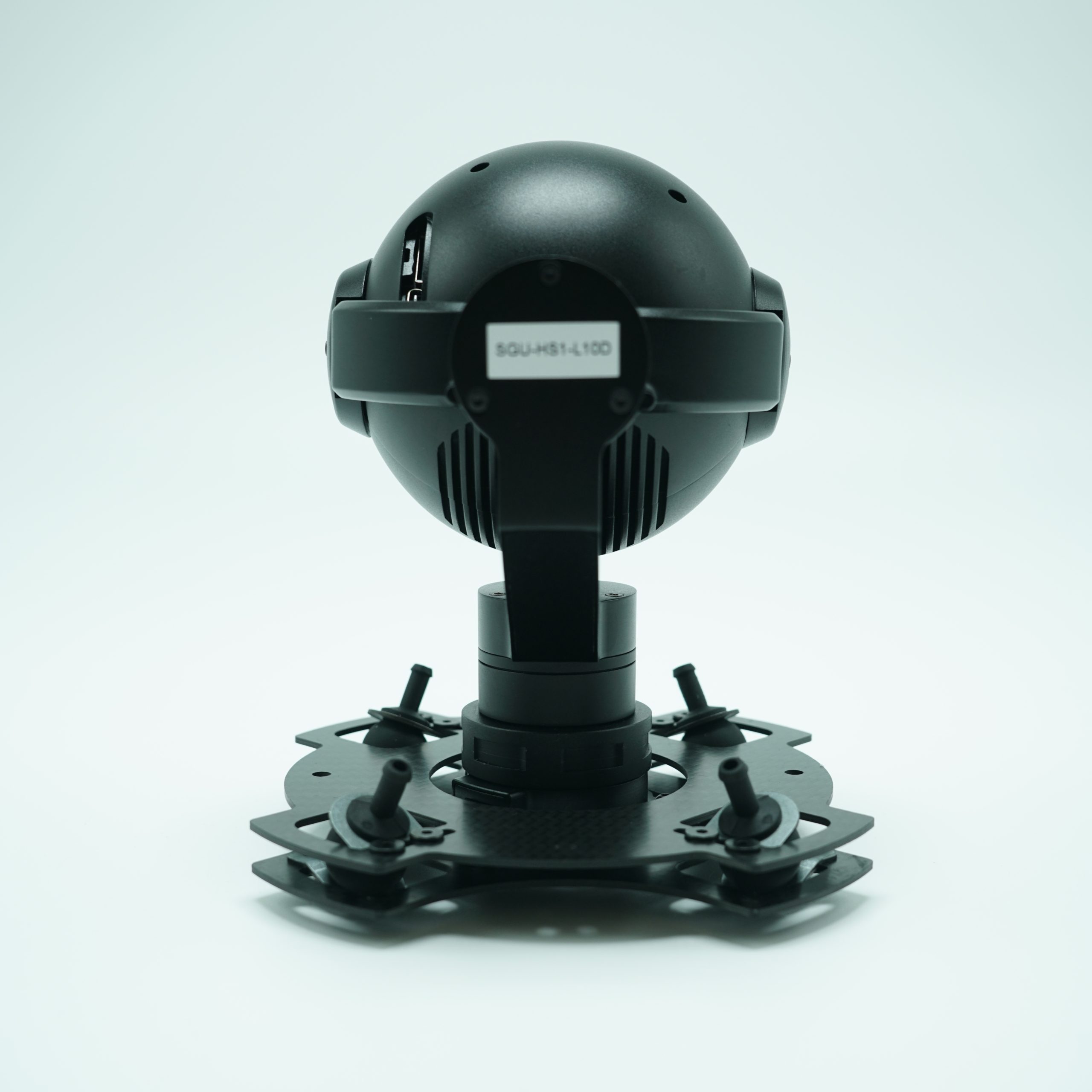

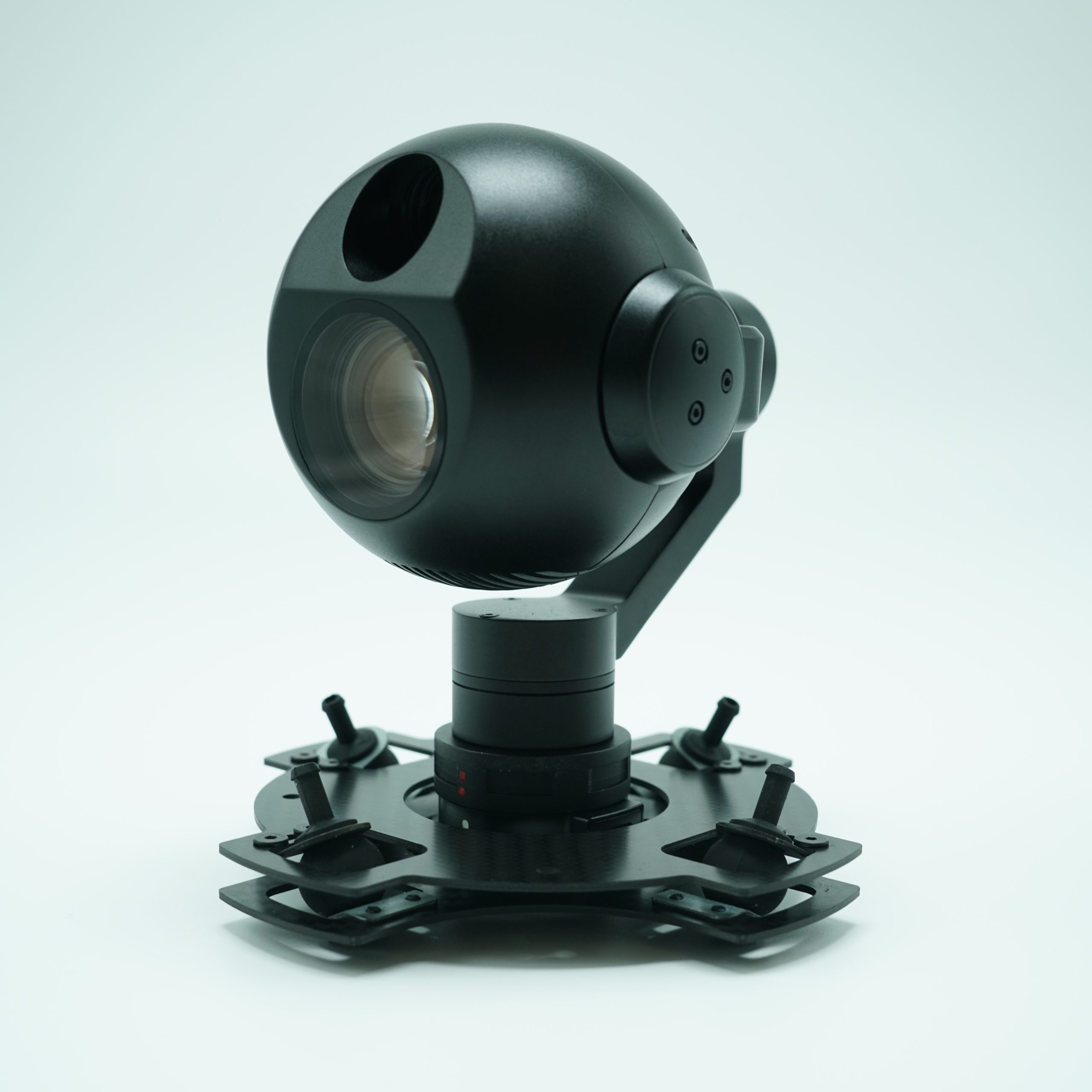

Dual-Sensor Gimbal LUX-L10D
UAV GimBal ModuleDual-Sensor Gimbal LUX-L10D
Contct Us
1. Technical Parameters
1.1. Overall parameters
| Video output interface |
Ethernet port |
| Control Signal Interface |
1 S.BUS, 1 RS422, 1 network port, 1 USB, 1 CAN |
| Power supply range |
10V to 28V |
| System power consumption |
Average power consumption: ≤15W Peak power: ≤30W |
| Protection class |
IP4X |
| Operating temperature |
– 20 ℃ ~ 55 ℃ |
| Size (without shock absorption) |
156 mm * 115 mm * 90 mm |
| Weight (without shock absorption) |
≤650g |
| Mechanical interface type |
Quick-release & fixing holes |
1.2. Zoom camera
| Image sensor |
8 million pixels |
|
|
|
| Maximum photo size |
3840*2160 (16:9) |
|
|
|
| Video resolution |
3840×2160@30fps, 1920×1080@30fps |
|
|
|
| Encoding format |
H.264, H.265 |
|
|
|
| Focus mode |
MF, AFS |
|
|
|
| Actual focal length |
4.7 mm – 47 mm |
|
|
|
| Equivalent focal length |
31.83 mm to 318.34 mm |
|
|
|
| Aperture |
F1.6 – F3.0 |
|
|
|
| Optical zoom |
10x |
|
|
|
| Field view |
Focal length |
DFOV |
HFOV |
VFOV |
| Wide |
68.4 ° |
61.3 ° |
36.9 ° |
|
| Tele |
7.8 ° |
6.8 ° |
3.8 ° |
|
1.3. Infrared camera
| Thermal imaging sensor |
Uncooled vanadium oxide infrared focal plane detector |
| Maximum photo size |
640 * 512 |
| Video resolution |
640*512@25fps |
| Encoding format |
H.264, H.265 |
| Pixel spacing |
12 microns |
| Wavelength range |
8 to 14 microns |
| Noise equivalent temperature difference |
≤ 50 mk@25℃, f#1.0 |
| Actual focal length |
18mm |
| Equivalent focal length |
79mm |
| Aperture |
F1.1 |
| Field of view |
24.2 ° * 19.5 ° |
| False color |
Supports 11 pseudo-color modes |
1.4. holder
| Stabilization system |
3 Axes (pitch, roll, heading) |
|
|
| Range of rotation |
Pitch |
Roll over |
Heading |
| + 170 ° |
Plus or minus 60 ° |
+ 170 ° |
|
| Stable accuracy |
0.01 ° or less |
|
|
| Working mode |
Follow, Lock |
|
|

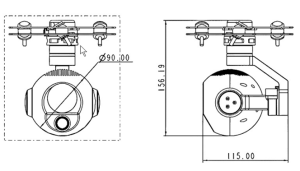

1.5. Structural outline
