I. Customer Background

Customer Name: A large-scale power grid transmission company in Bavaria, GermanyIndustry Sector: Power Energy – Transmission Line InspectionBusiness Scale: Responsible for the operation and maintenance of over 10,000 kilometers of high-voltage transmission lines in Bavaria, covering full voltage grades from 110kV to 380kV. The lines traverse complex terrains such as the Alpine mountainous areas, hilly regions, the Danube River Basin, and urban built-up areas, with more than 60% of the lines located in remote Alpine mountain gorge areas with scarce human activity.Original Inspection Mode: Dominated by manual foot patrols, supplemented by a small number of helicopter inspections. Each year, over 280 full-time inspection personnel are deployed, resulting in long inspection cycles, high costs, and prominent safety risks.

II. Core Challenges Faced

1. Serious Insufficiency in Inspection Efficiency: Manual inspection can only cover 2-4 kilometers of lines per person per day on average, and a full inspection of all lines in the state takes 6-7 months, failing to meet the power grid’s requirements of “full coverage and no dead ends” for inspections.

2. Extremely High Operational Safety Risks: It is difficult to guarantee the personal safety of inspectors in hazardous areas such as Alpine cliffs and lines crossing the Danube River, with a total of 8 inspection safety accidents occurring in the past three years.

3. Low Precision in Defect Detection: Manual visual inspection is unable to identify defects such as conductor strand breakage below 0.5mm, micro-cracks in insulators, and concealed corrosion of hardware fittings. Historical data shows that the missed detection rate is as high as 30%.

4. Low Digitization Level of Data Management: Inspection data is mainly recorded on paper, making it difficult to achieve unified archiving and trend analysis, and unable to support line condition assessment and predictive maintenance.

5. Low Cost-Effectiveness of Helicopter Inspection: The hourly flight cost exceeds 2,800 Euros, and it is highly restricted by weather and airspace approval. Only 2-3 rounds of key line inspections can be carried out annually.

III. Luminex Customized Solution

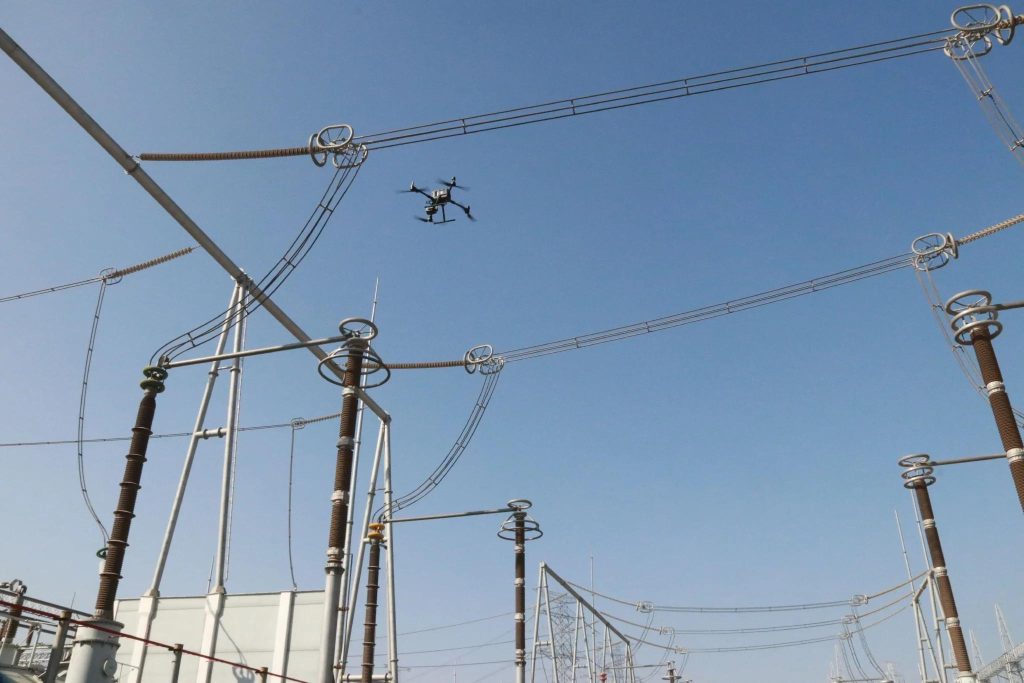

In response to the actual pain points of this Bavarian power grid company, we provide a complete UAV intelligent inspection solution based on the LUX-M30A lightweight tri-sensor integrated electro-optical gimbal, which is perfectly compatible with the customer’s existing mainstream industrial-grade UAV platforms.

Core Product: LUX-M30A Tri-Sensor Integrated Electro-Optical Gimbal (Authentic Technical Parameters)

• Ultra-Lightweight Design: Overall weight < 900g (excluding shock absorber), 40% lighter than similar products in the industry, significantly improving UAV endurance time and payload capacity.

• 30x Ultra-HD Visible Light Camera: 8-megapixel sensor, 30x optical zoom (equivalent focal length 35.2-1005.1mm), F1.3-F4.8 large aperture, supporting 4K@30fps video recording and autofocus.

• High-Performance Infrared Thermal Imager: 640×512 resolution uncooled vanadium oxide detector, 18mm focal length F1.1 large aperture, ≤50mk ultra-high sensitivity, supporting 11 false color modes and DDE (Digital Detail Enhancement).

• High-Precision Laser Rangefinder: Ranging range of 5-1500m, ranging accuracy of ≤1m (within 300m)/≤±2m (beyond 300m), supporting continuous ranging at 1Hz/2Hz/5Hz.

• Professional Three-Axis Gimbal: Ultra-high stability accuracy of ±0.01°, wide-range rotation with pitch ±110°, roll ±45°, yaw ±320°, supporting follow, lock, one-click return to center, one-click downward and other modes.

• Built-in AI Intelligent Algorithm: Equipped with a neural network engine SOC processor, supporting automatic target detection, tracking and defect recognition under dual-sensor images.

• Rich Interfaces & High Adaptability: Supporting multiple interfaces such as Ethernet, RS422, CAN, SBUS, IP54 protection rating, wide temperature operation from -20℃ to 55℃, and equipped with a quick-release interface for 10-second quick assembly and disassembly.

Composition of the Complete Solution

1. Hardware System: 10 sets of LUX-M30A tri-sensor gimbals + supporting industrial-grade hexacopter UAVs + ground station control system + explosion-proof transport cases.

2. Software System: Luminex Intelligent Inspection Data Analysis Platform, integrated with the exclusive AI defect recognition model for LUX-M30A, supporting automatic image annotation, defect classification, and one-click report generation.

3. Customized Services: Route planning templates optimized for Bavarian terrain, infrared temperature measurement calibration services, and OSD information customization.

4. Training & Technical Support: Providing 7×24 multilingual remote technical support.

IV. Project Implementation Process

1. In-Depth Demand Research: Spent 2 weeks conducting in-depth research at various inspection stations in Bavaria to sort out the inspection standards and difficulties of lines with different voltage grades and terrains (Alpine mountainous areas / Danube River Basin).

2. Equipment Customization & Delivery: Customized adapted interfaces according to the customer’s UAV models, completed the production, CE certification testing and delivery of 10 sets of LUX-M30A gimbals.

3. On-Site Installation & Commissioning: The technical team completed gimbal installation, parameter calibration and system joint commissioning to ensure perfect compatibility with the customer’s existing UAVs and ground stations.

4. Pilot Operation & Optimization: Selected 5 typical complex lines in the Alpine mountainous areas for a 3-month pilot, iteratively optimizing the AI defect recognition model and inspection processes.

5. Comprehensive Promotion & Application: Fully promoted in 10 inspection stations in Bavaria, establishing a new inspection system of “UAV-based inspection as the main method, manual inspection as supplementary”.

V. Project Implementation Results

Quantified Core Achievements

• 850% Improvement in Inspection Efficiency: UAVs equipped with LUX-M30A can complete 20-30 kilometers of line inspection per hour, shortening the full inspection cycle of the state’s lines from 6 months to 22 days.

• Defect Detection Precision Improved to 96%: Capable of clearly identifying 0.3mm conductor strand breakage and micro-cracks in insulators, reducing the missed detection rate from 30% to 4%.

• 65% Reduction in Comprehensive Inspection Cost: The inspection cost per kilometer is only 1/5 of manual inspection and 1/20 of helicopter inspection.

• Zero Safety Accidents: Completely eliminated the potential safety hazards of manual inspection in complex terrain areas such as the Alpine mountainous areas.

• 92% Improvement in Data Processing Efficiency: The AI platform can automatically identify more than 85% of common power defects, reducing the time for generating a single line inspection report from 3 days to 1.5 hours.

• 30% Improvement in Endurance Capacity: Benefiting from the lightweight design of LUX-M30A, the single flight endurance of UAVs is extended from 38 minutes to 50 minutes.

Non-Quantified Strategic Value

• Realized a fundamental transformation of transmission line inspection in Bavaria from “labor-intensive” to “technology-intensive”.

• Established a digital inspection archive database compliant with EU GDPR requirements, providing data support for the whole-life cycle management of lines.

• Enhanced emergency inspection capabilities under extreme weather conditions (heavy snow and rain in the Alpine mountainous areas), enabling the completion of key line inspections within 24 hours after disasters.

VI. Authentic Customer Reviews

“Luminex’s LUX-M30A gimbal has brought revolutionary changes to the power grid inspection work in Bavaria. Its lightweight design allows our UAVs to cover wider Alpine mountainous areas, the 30x zoom and high-definition infrared can detect subtle defects that were previously invisible to manual inspection, and the built-in AI algorithm has greatly reduced the labor cost of data analysis. Now we not only have significantly improved inspection efficiency, but also the safety and reliability of power grid operation have reached a new height.”

—— Transmission Operation and Maintenance Director of a Power Grid Company in Bavaria

“In the past, line inspection in the Alpine mountainous areas was the biggest challenge. Manual inspection was not only inefficient, but also faced risks of avalanches and falling off cliffs. Now, with UAVs equipped with LUX-M30A, a single technician can complete the workload that previously took a team a week in one day, completely resolving the pain points of inspection in high-risk areas.”

—— Station Master of Garmisch-Partenkirchen Inspection Station in Bavaria

VII. Product Adaptation & Expansion Instructions

• Multi-Platform Adaptation: LUX-M30A is equipped with a standard quick-release interface, and the LUX-M30A-ZY model is also launched to specially adapt to mainstream industrial UAVs such as Ziyan F15.

• Function Expansion: Can customize and develop AI recognition models for specific scenarios according to customer needs, and support docking with the customer’s existing power management systems.

• Upgrade Service: Provide lifetime software upgrade services to continuously optimize algorithm performance and functional experience.
