UAV Component / Camera Module

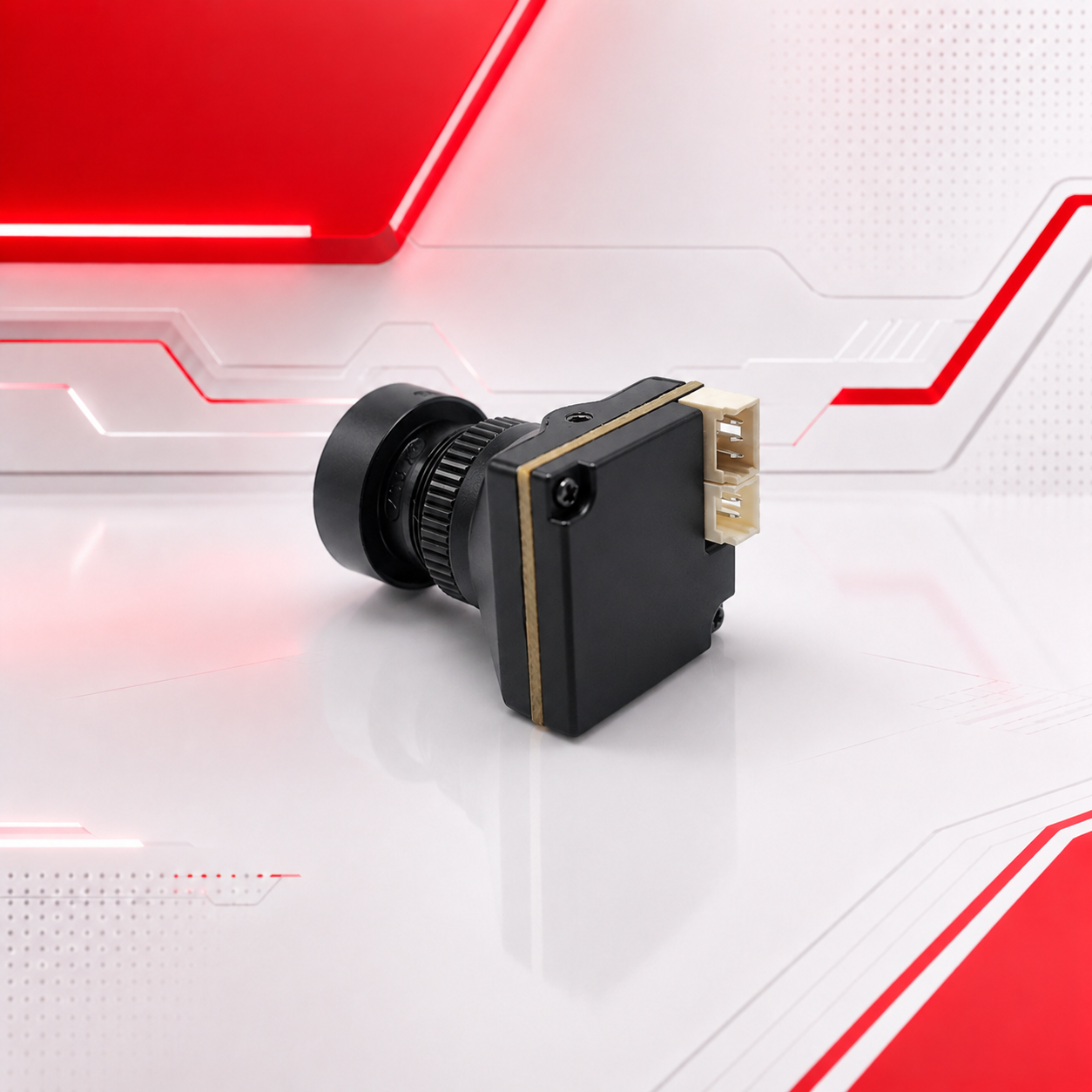

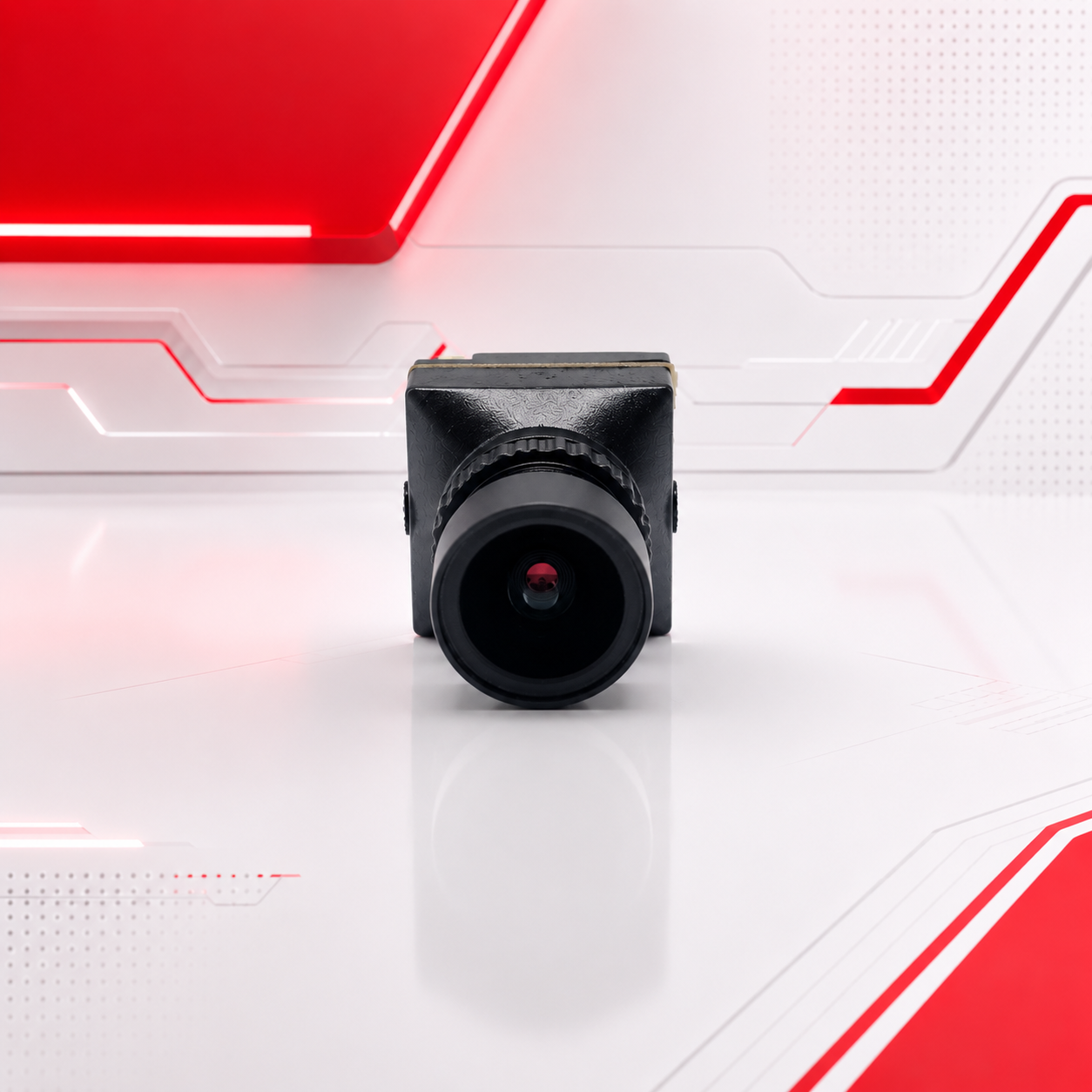

Lumx-308Pro 5MP F1.0 Low-Light UAV Camera Module
Professional low-light UAV camera module with a 1/1.8 inch CMOS sensor, 5MP resolution, F1.0 large aperture, 112.49 deg ultra-wide diagonal field of view, and CVBS analog video output.
01 Product Overview
Product Description
The Lumx-308Pro camera module combines ultra-wide optical design, large-aperture low-light imaging, and a compact industrial-grade structure. It is built with a 1/1.8 inch CMOS sensor and F1.0 aperture to help deliver bright, detailed images in challenging lighting conditions. The module is suitable for UAV vision, security monitoring, industrial inspection, machine vision, and analog video transmission platforms.
F1.0 Large Aperture
Improves light intake and helps produce brighter images in low-light environments.
Ultra-Wide FOV
112.49 deg diagonal field of view expands monitoring and inspection coverage.
Low Distortion
Approx. -30.27% optical distortion control for an ultra-wide lens design.
Industrial Structure
7E optical lens structure and M12 standard interface for robust integration.
02 Specifications
Electrical Parameters
| Item | Specification | Remark |
|---|---|---|
| Image Sensor | 1/1.8 inch CMOS | High-resolution sensor |
| Effective Resolution | 5MP | Mainstream high-end configuration |
| Video Output | CVBS analog composite video | Compatible with analog VTX and receivers |
| Horizontal Angle | 100 deg | Ultra-wide horizontal coverage |
| Diagonal FOV | 112.49 deg | Ultra-wide viewing coverage |
| Focal Length | 3.13 mm | Ultra-wide fixed focus |
| Aperture | F1.0 | Large aperture for low-light imaging |
| IR Cut Filter | 650 nm | For day/night visual applications |
| Operating Voltage | DC 5V-12V | Wide voltage input |
Mechanical Parameters
| Item | Specification | Remark |
|---|---|---|
| PCB Size | 19.0 mm x 19.0 mm | Standard 19 x 19 mm mounting |
| Overall Size | 19.0 mm x 19.0 mm x 26.8 mm | Including connector and peripheral parts |
| Drawing Size | 29.0 mm x 19.0 mm x 19.0 mm | Tolerance 0.2 mm |
| Optical Structure | 7E | Industrial optical design |
| Lens Interface | M12 standard interface | Robust mechanical structure |
| Weight | 11.4 g | For payload-sensitive platforms |
| Connector | 5Pin, 1.25 mm pitch | Pins numbered left to right |
03 Performance
| Item | Condition | Specification |
|---|---|---|
| Large Aperture | Low-light imaging | F1.0 |
| Ultra-Wide View | Monitoring and inspection | 112.49 deg diagonal; 100 deg horizontal |
| Video Output | Analog UAV transmission | CVBS |
| Power Input | Direct system supply | DC 5V-12V |
| Automatic Exposure | Changing light | Supported |
| Automatic White Balance | Color restoration | Supported |
| Applications | Image quality and environment adaptability | Security monitoring, industrial inspection, machine vision |
04 Dimensions & Installation

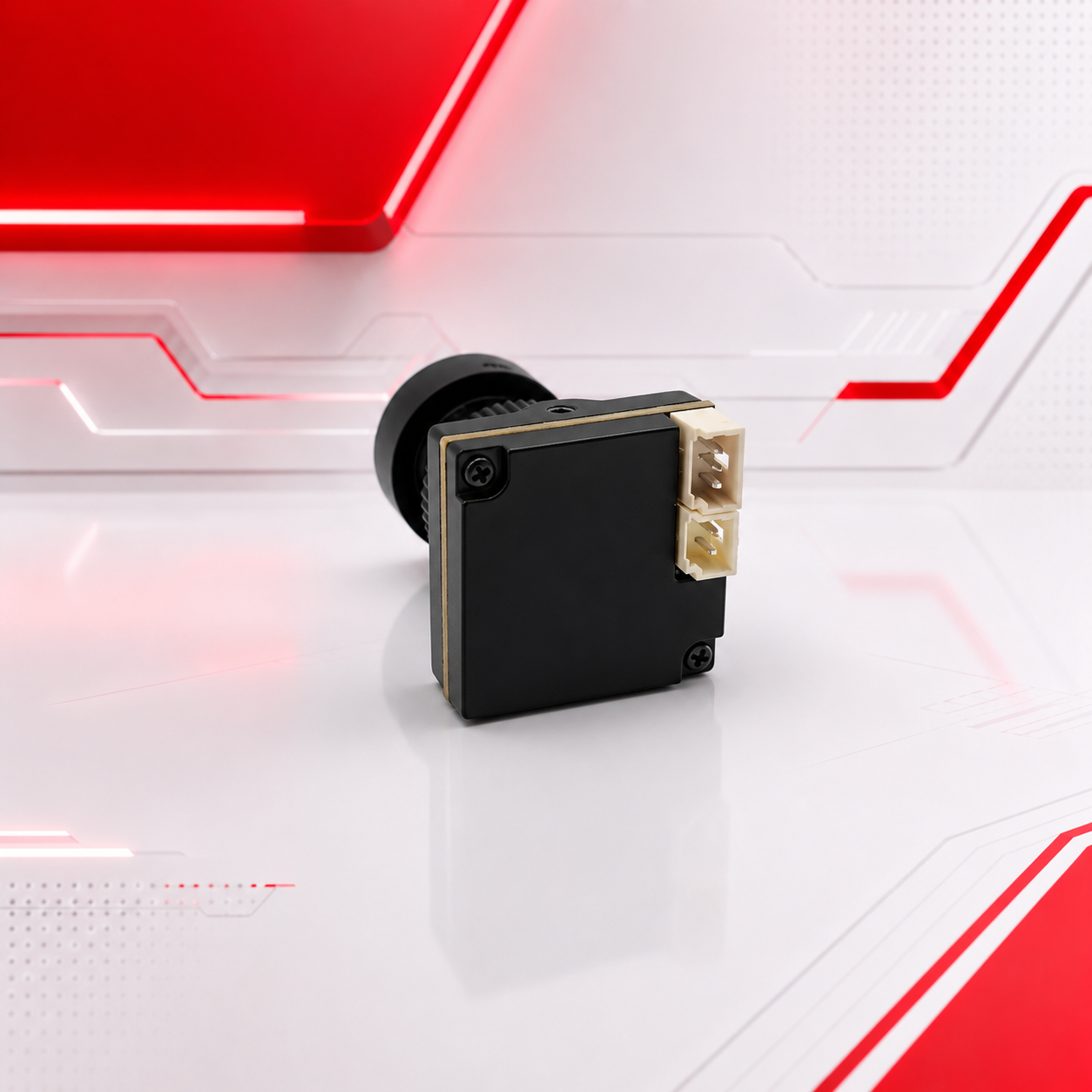

The Lumx-308Pro uses a 5Pin 1.25 mm pitch connector with pins numbered from left to right. Ensure all components are securely fixed before installation and avoid mechanical interference.
| Pin | Signal | Function |
|---|---|---|
| 1 | OSD | OSD menu control |
| 2 | Video GND | Video signal ground |
| 3 | Video | Video signal output |
| 4 | GND | Power ground |
| 5 | V+ | DC power positive, 5V-12V |
05 Reliability & Environment
| Item | Specification | Remark |
|---|---|---|
| Operating Temperature | -25 deg C to +70 deg C | Industrial wide temperature |
| Storage Temperature | -30 deg C to +80 deg C | Storage environment reference |
| Optical Reliability | 7E optical lens structure | Industrial-grade design |
| Low-Light Imaging | F1.0 aperture | Bright detailed image in low light |
| Installation Reliability | M12 interface; 19 x 19 mm PCB | Easy integration |
