UAV Component / Camera Module

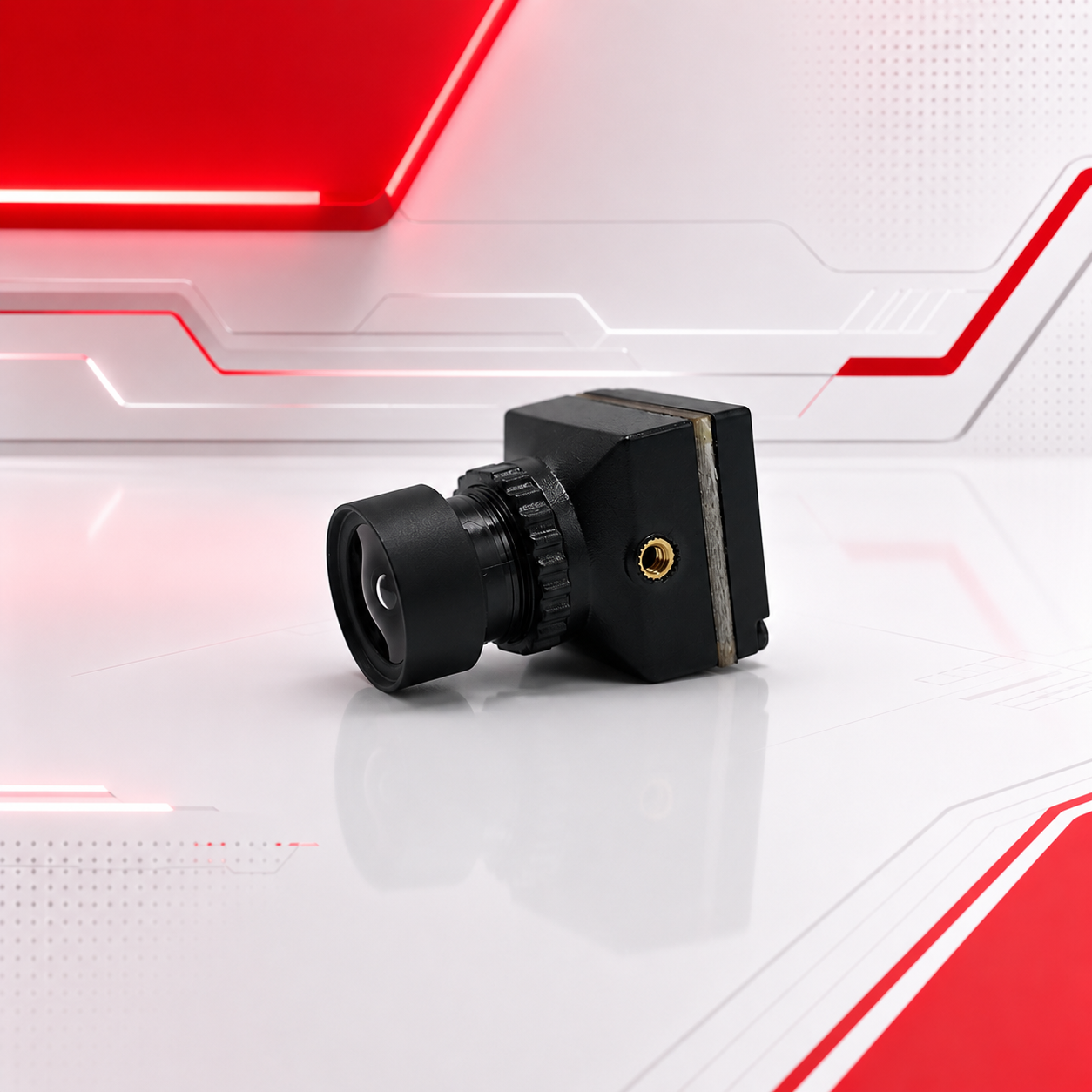

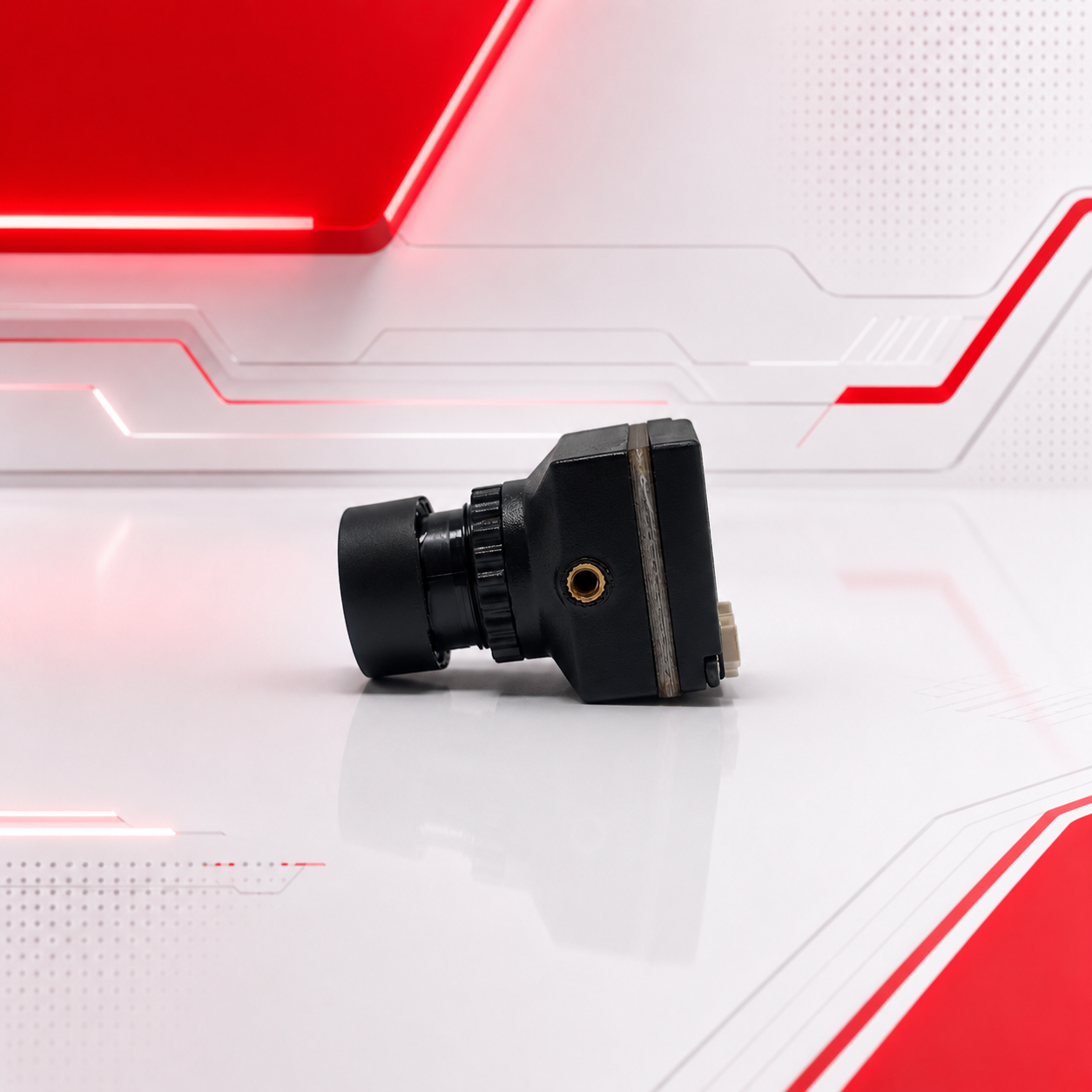

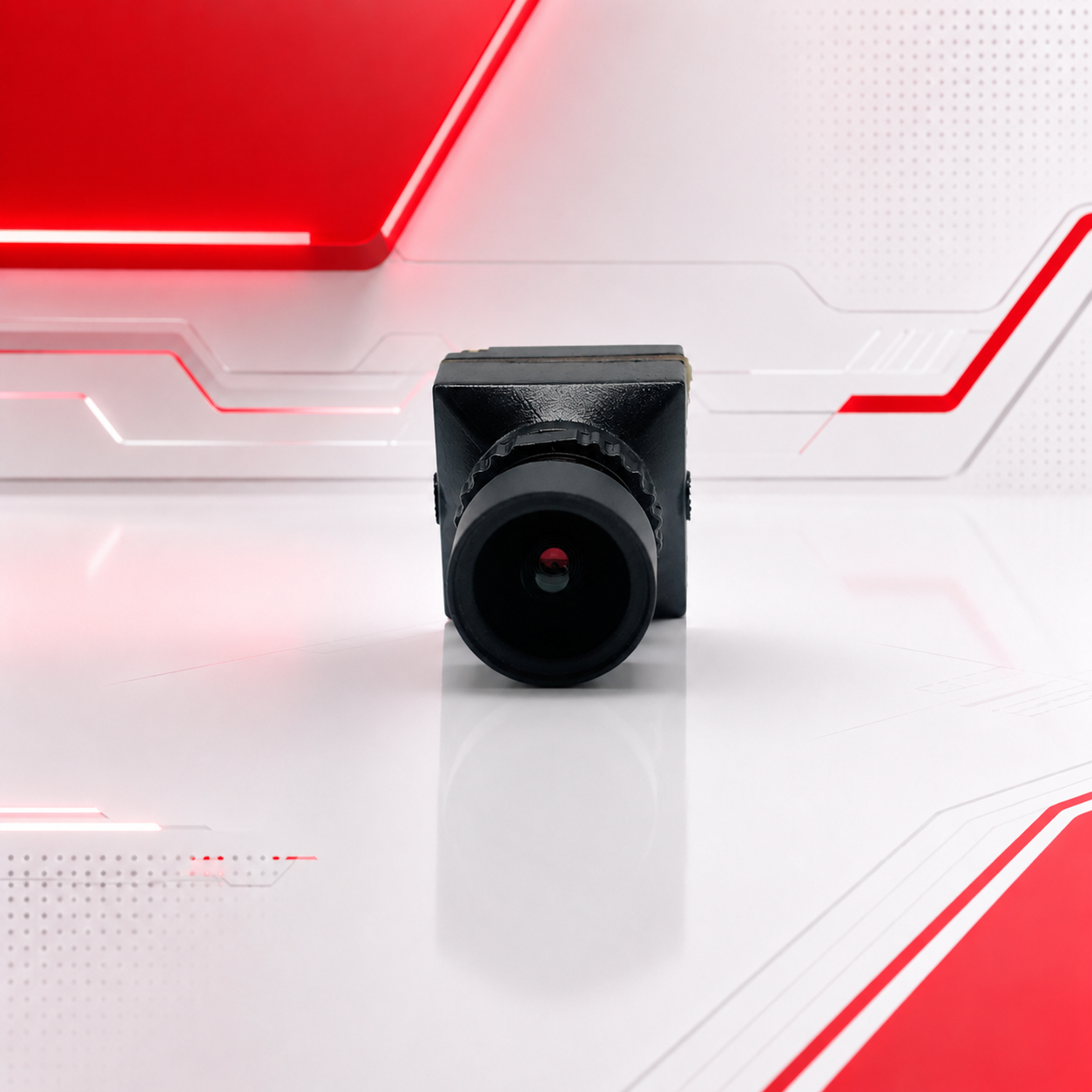

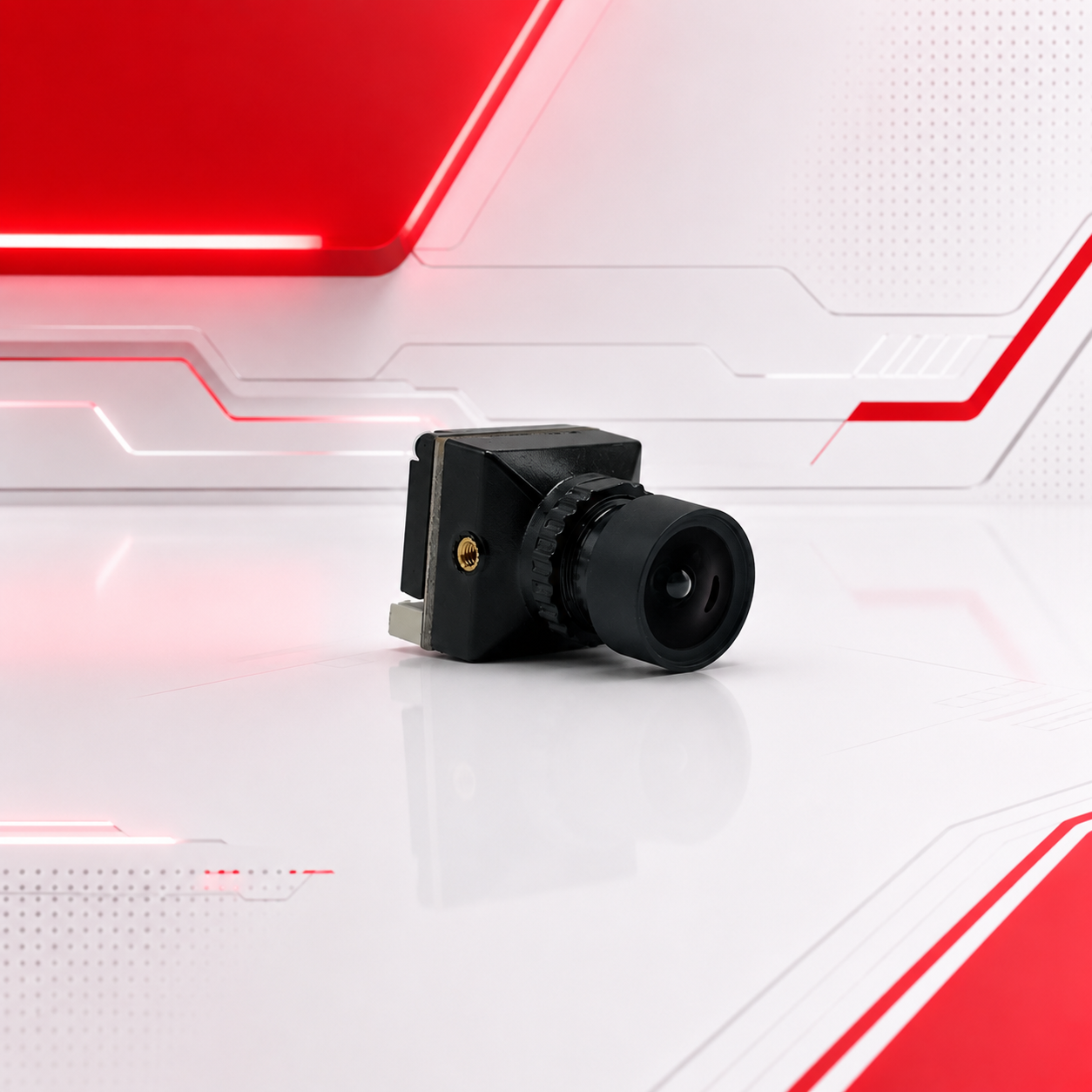

Lumx-108 5MP Low-Latency Analog FPV UAV Camera Module
Compact analog FPV camera module with up to 5MP resolution, CVBS output, wide DC 5V-12V input, and a lightweight 19 x 19 mm PCB footprint for UAV and mobile real-time video applications.
01 Product Overview
Product Description
The Lumx-108 camera module is designed for compact analog FPV applications where low latency, small size, and easy integration matter. It uses a 1/3 inch CMOS sensor and outputs CVBS analog composite video, making it compatible with common analog video transmitters and receivers. The module is suitable for FPV drones, UAV platforms, mobile vision systems, and cost-sensitive embedded imaging applications.
Low Latency
Typical end-to-end signal latency is no more than 18 ms, suitable for real-time FPV operation.
Wide Voltage Input
Supports DC 5V-12V input for direct integration with UAV, vehicle, or device power systems.
Compact Design
19.0 x 19.0 mm PCB size and approx. 5.6 g weight help save installation space and payload.
Outdoor Adaptability
Operating temperature from -25 deg C to +75 deg C for outdoor UAV application environments.
02 Specifications
Electrical Parameters
| Item | Specification | Remark |
|---|---|---|
| Image Sensor | 1/3 inch CMOS | Compact analog imaging platform |
| Effective Resolution | Up to 5MP | High-resolution analog camera module |
| Video Output | CVBS analog composite video | Compatible with analog VTX and receivers |
| Field of View | 88 deg diagonal; H 74.7 deg; V 40.8 deg | Wide-angle FPV view |
| Focal Length | 4 mm | Standard wide-angle focal length |
| Aperture | F2.8 | Fixed-focus lens |
| Optical Distortion | -23.4% | Lens performance reference |
| Operating Voltage | DC 5V-12V | Wide voltage input |
Mechanical Parameters
| Item | Specification | Remark |
|---|---|---|
| PCB Size | 19.0 mm x 19.0 mm | Standard 19 x 19 mm mounting |
| Overall Size | 29.4 mm x 19.0 mm x 19.0 mm | Including connector and peripheral parts |
| Weight | Approx. 5.6 g | Compact lightweight design |
| Connector | 5Pin, 1.25 mm pitch | UAV module connector |
| Structure | 4E | Economic compact design |
03 Performance
| Item | Condition | Specification |
|---|---|---|
| Signal Latency | FPV real-time link | ≤18 ms typical |
| Power Input | Direct battery supply | DC 5V-12V |
| Video Output | Analog FPV transmission | CVBS |
| Automatic Exposure | Changing light | Supported |
| Automatic White Balance | Color restoration | Supported |
| Applications | Mobile real-time platforms | FPV drone, UAV, entry-level security |
04 Dimensions & Installation

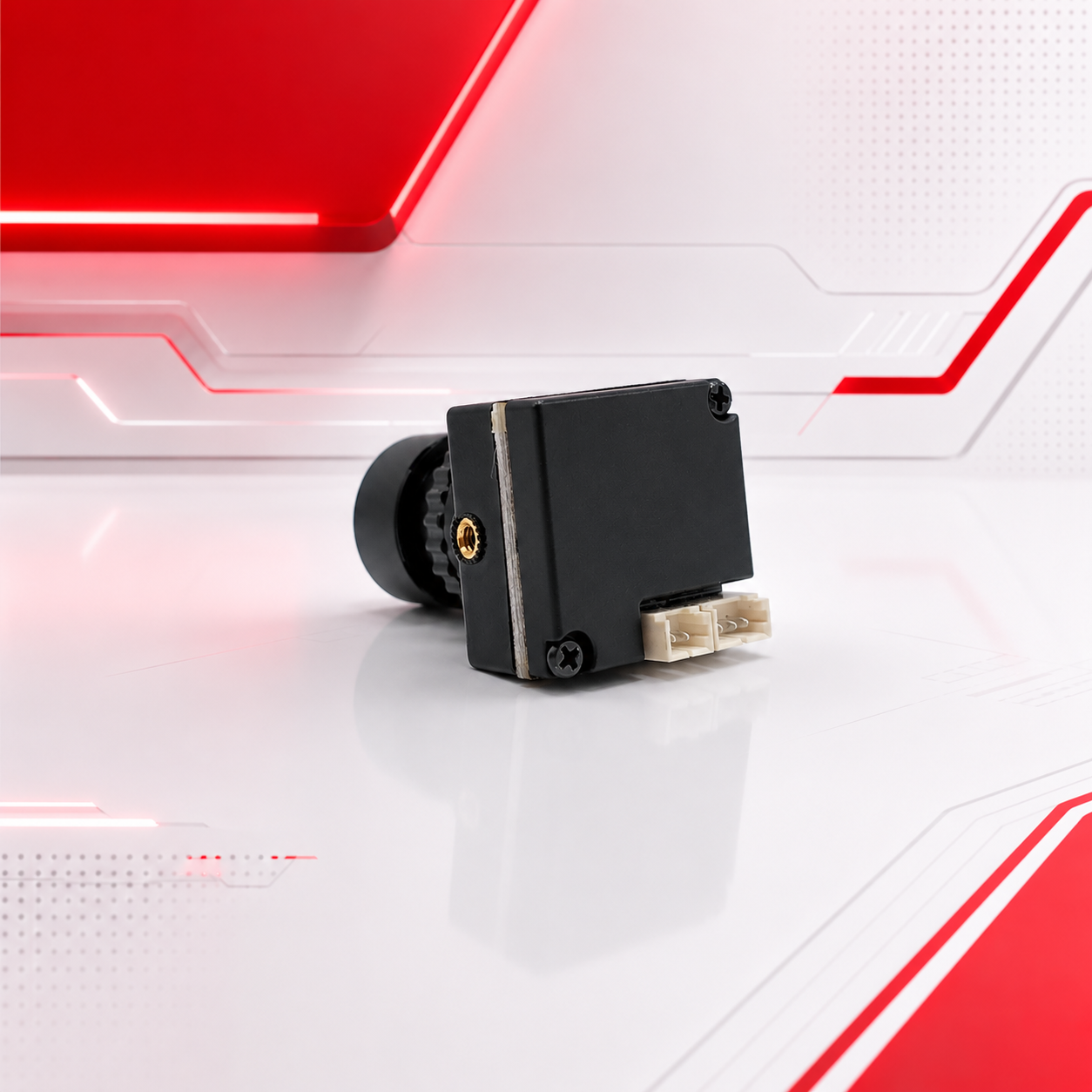

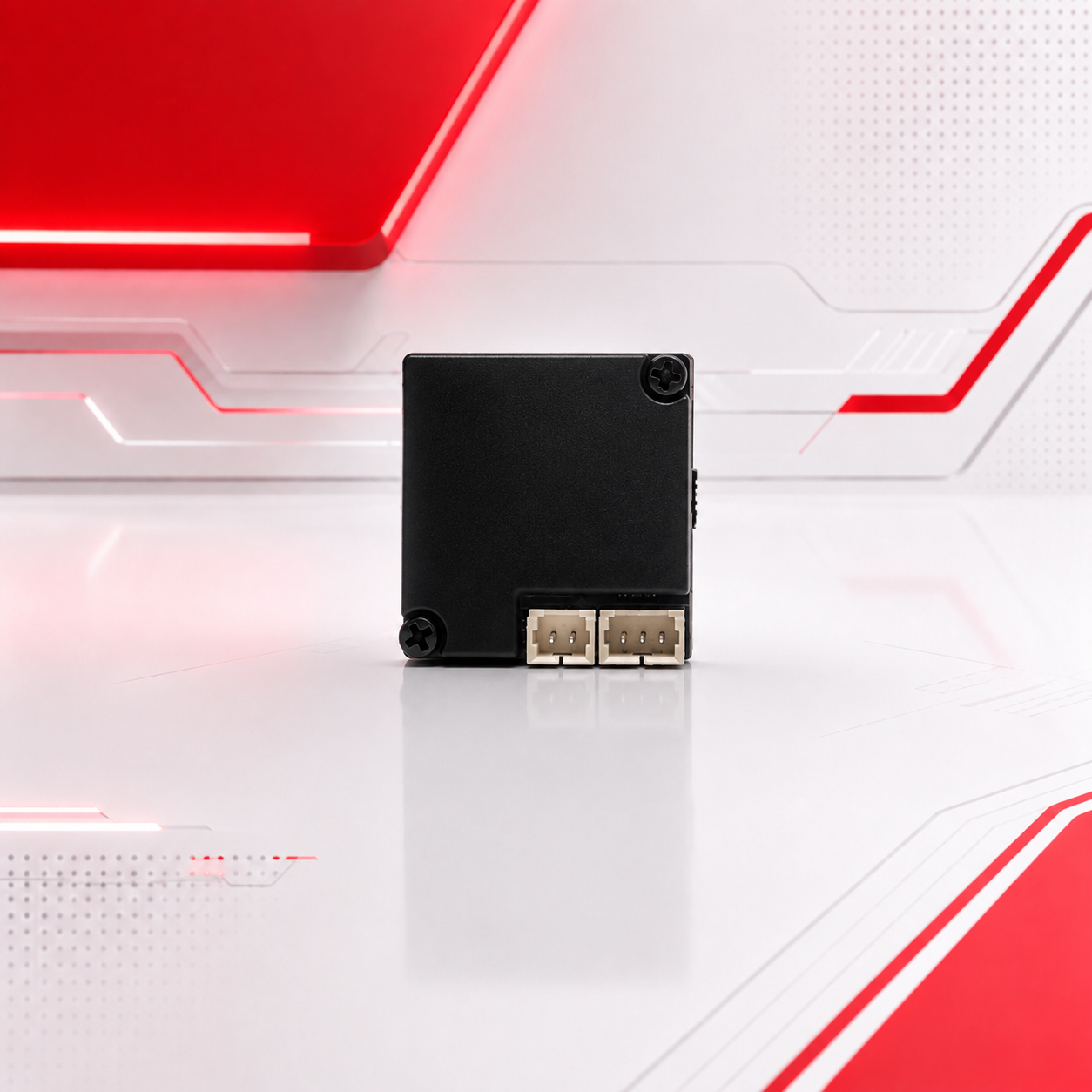

The Lumx-108 uses a 5Pin 1.25 mm pitch connector. Ensure all components are securely fixed before installation and avoid mechanical interference.
| Pin | Signal | Function |
|---|---|---|
| 1 | SV | DC power positive, 5V-12V |
| 2 | GND | Power ground |
| 3 | Video | Video signal output |
| 4 | Video GND | Video ground |
| 5 | OSD | OSD menu control |
05 Reliability & Environment
| Item | Specification | Remark |
|---|---|---|
| Operating Temperature | -25 deg C to +75 deg C | Industrial wide temperature |
| Storage Temperature | -40 deg C to +85 deg C | Storage environment reference |
| Low Latency Reliability | ≤18 ms typical | For racing FPV and real-time UAV use |
| Installation Reliability | 19 x 19 mm standard pattern | Easy integration |
