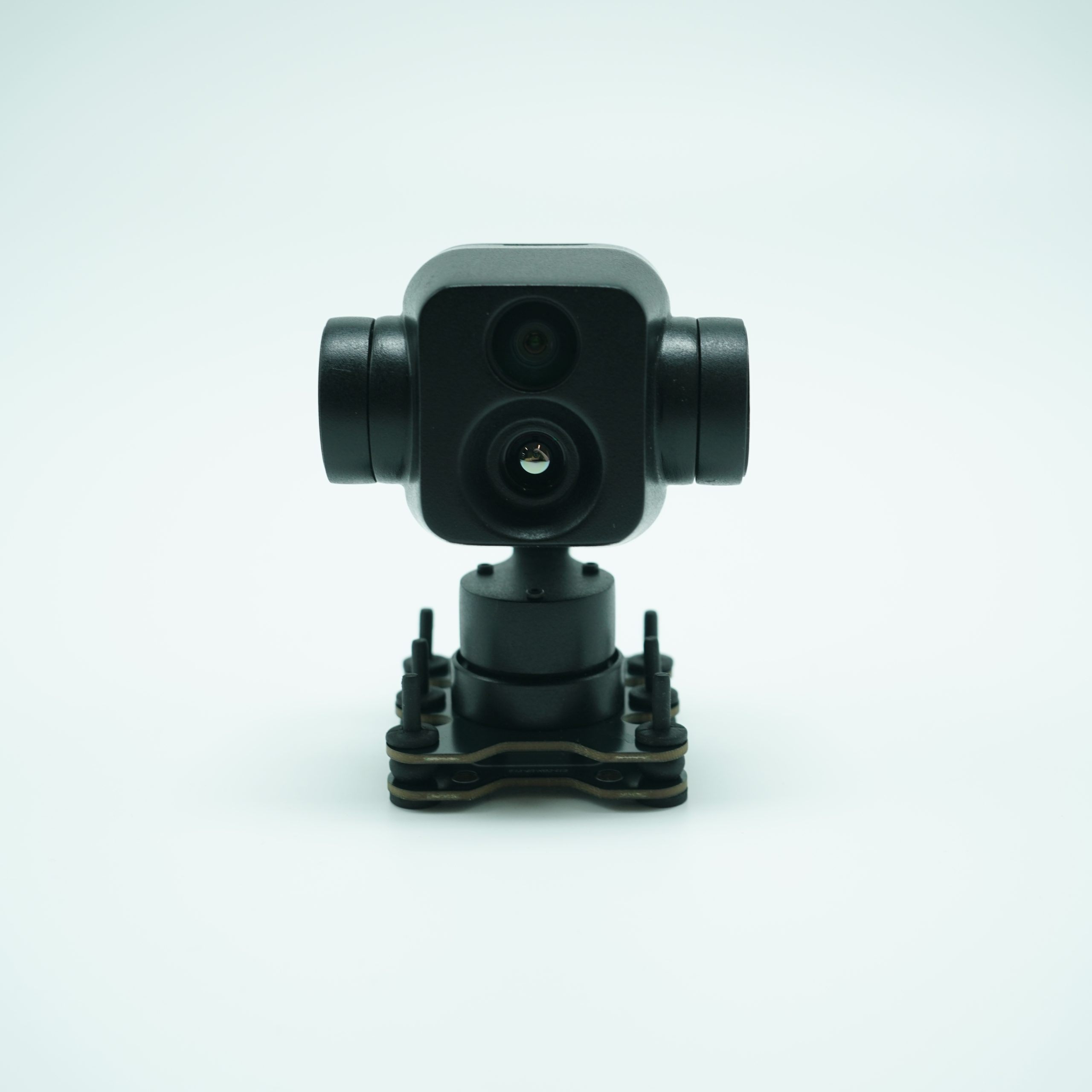

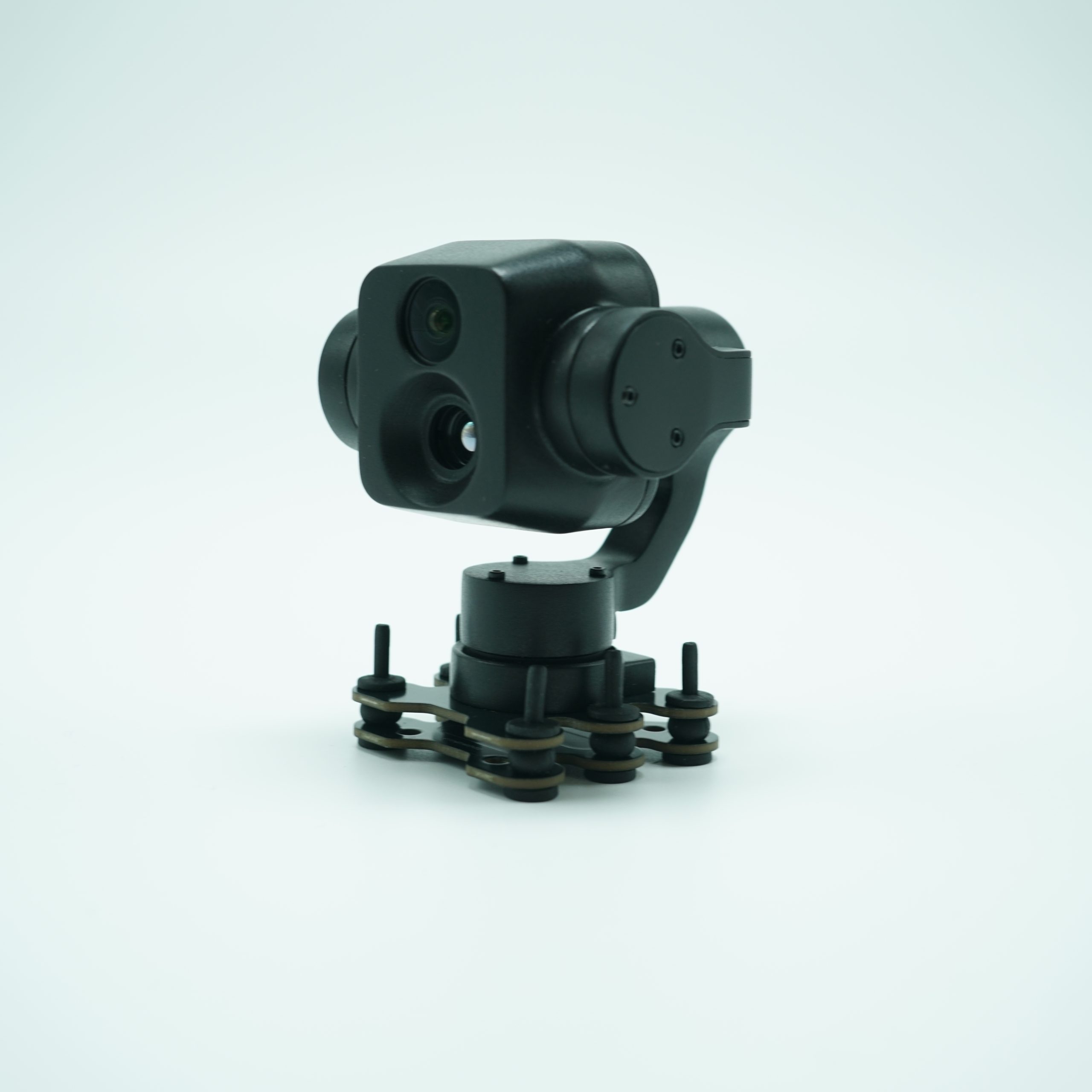

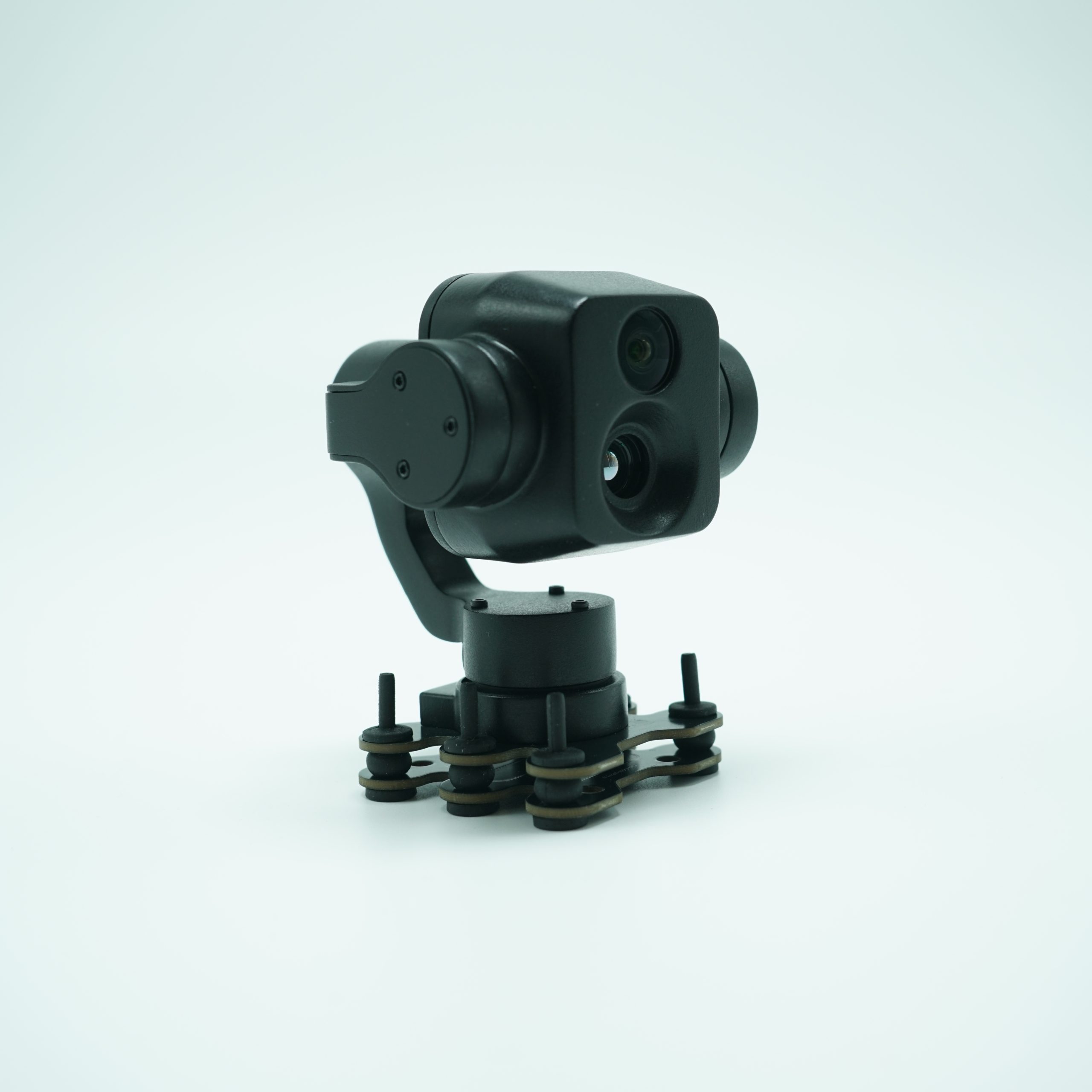

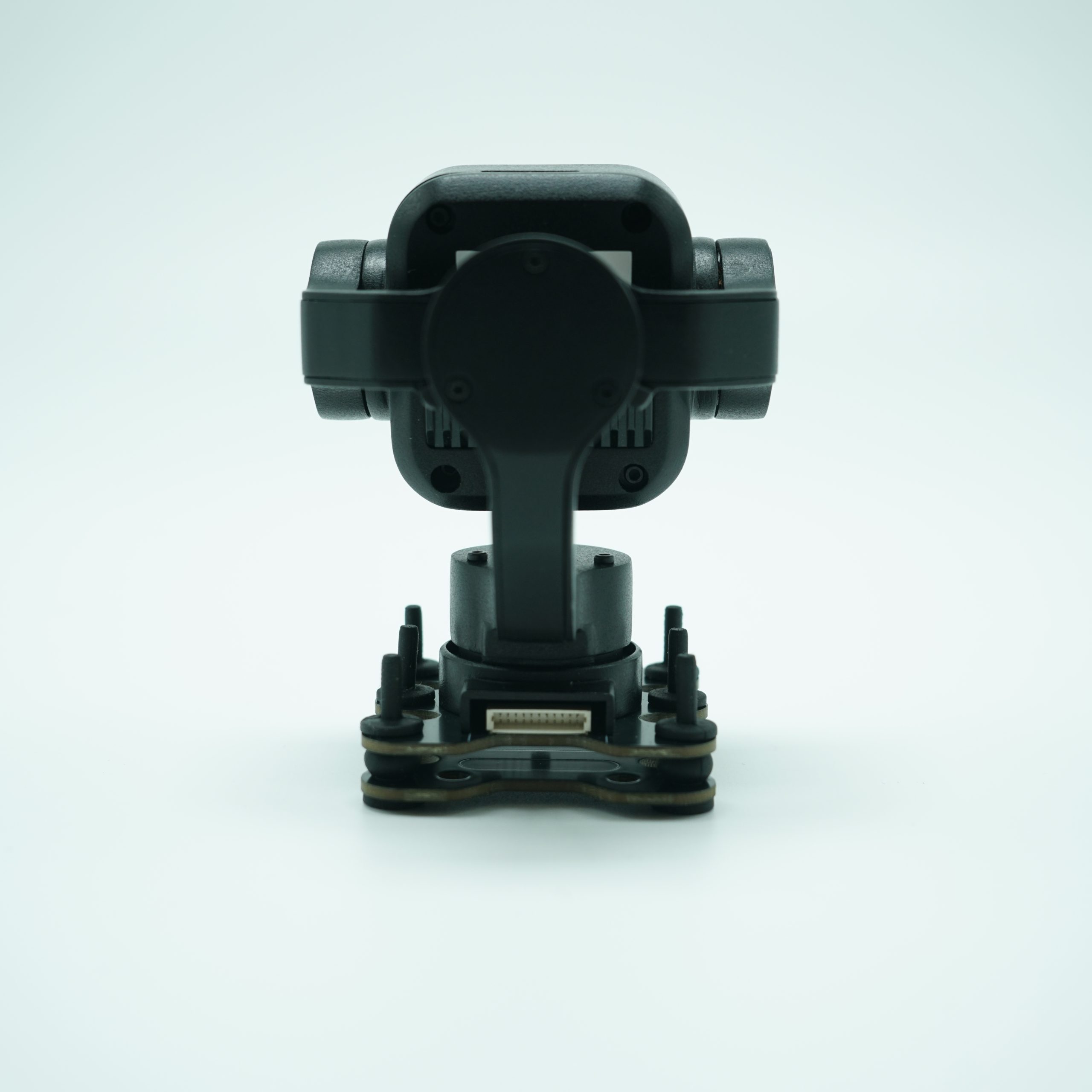

Dual-Sensor Gimbal LUX-L0
UAV GimBal ModuleDual-Sensor Gimbal LUX-L0
Contct Us
1. Technical Parameters
1.1. Overall parameters
| Video output interface |
Ethernet port |
| Control Signal Interface |
1 network port, 1 TTL |
| Power supply range |
12V to 36V |
| Operating current |
400mA@12V |
| Protection grade |
IP4X |
| Operating temperature |
– 20 ℃ ~ 55 ℃ |
| Size (without shock absorption) |
61.6 mm * 65 mm * 84 mm |
| Weight |
≤150g |
| Mechanical interface type |
Fixed holes |
1.2. Wide-angle camera
| Image sensor |
8 million pixels |
| Maximum photo size |
1920*1080 (16:9) |
| Video resolution |
1920×1080@30fps |
| Encoding format |
H.264, H.265 |
| Actual focal length |
The 3.01 mm |
| Equivalent focal length |
The 20.39 mm |
| Aperture |
F1.75 |
| Field view |
DFOV135.6° HFOV113° VFOV60° |
1.3. Infrared camera
| Thermal imaging sensor |
Uncooled vanadium oxide infrared focal plane detector |
| Maximum photo size |
384 * 288 |
| Video resolution |
384*288@25fps |
| Encoding format |
H.264, H.265 |
| Pixel spacing |
12 microns |
| Wavelength range |
8 to 14 microns |
| Noise equivalent temperature difference |
≤ 50 mk@25 ° c, f#1.0 |
| Actual focal length |
7mm |
| Aperture |
F1.0 |
| Field of view |
19 °, 25 ° * |
1.4. holder
| Stabilization system |
3 Axes (pitch, roll, heading) |
|
|
| Range of rotation |
Pitch |
Roll Over |
Heading |
| + 10 ° ~ 90 ° |
Plus or minus 45 ° |
+ 90 ° |
|
| Stable accuracy |
0.01 ° or less |
|
|
| Working mode |
Follow, follow, manual, one-click return to center |
|
|

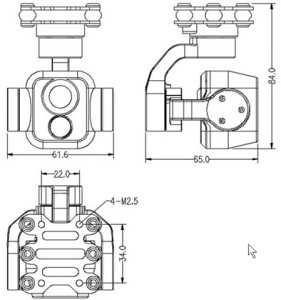

1.5. Structural outline
